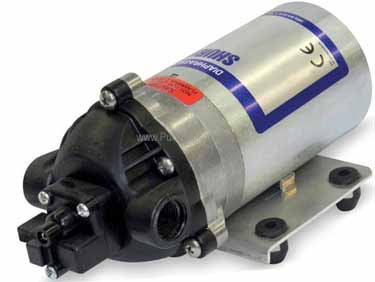

Shurflo # 8000-343-236 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8000-343-236

Shurflo # 8000-343-236

Shurflo catalog # 8000-343-236, Diaphragm Pump with 12 Volt DC Motor and 60 PSI Automatic Demand Switch. Polypropylene Pump Body, Viton Valves, Viton Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.2 GPM open flow.

Price : $ 568.67

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, feature Chemical-resistant materials and are designed for heavy-duty spraying and fluid transfer applications. Pump can run dry without damage and has a built-in check valve. The 8000 Series diaphragm pump is SHURflos most widely used agriculture pump. The unique conical valve design delivers high flow rates at maximum discharge pressures, making the 8000 Series the pump of choice for sprayers used on the farm or around the yard. These pumps deliver maximum performance in a wide range of applications.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 45 PSI

Bypass: 45 PSI

Check Valve: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow

Liquid Temperature: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.

Prime: Self-Priming Up To 11 Ft. Vertical

Weight: 4.1 Lbs (1.9 Kg)

Duty Cycle: Continuous

Features :

Pump Body:
Polypropylene
Impeller:
Viton
Shaft:
Viton
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-111-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-343-236


Pressure Switch Kit :

Catalog # 94-375-05, 40-60 PSI SWITCH

Price: $ 42.42

Qty :

Can Ship : Same Day (2 in stock)


Check Valve Kit :

Catalog # 94-374-10, CHECK VALVE 2 WAY VITON

Price: $ 17.01

Qty :

Can Ship : Same Day (6 in stock)


Upper Housing Kit :

Catalog # 94-379-00, POLYPRO UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (14 in stock)


Valve Assembly Kit :

Catalog # 94-390-05, VITON VALVES FOR 8000 -

Price: $ 65.29

Qty :

Can Ship : Same Day (162 in stock)


Diaphragm Kit :

Catalog # 94-395-05, VITON DIAPHRAGM KIT FOR

Price: $ 89.63

Qty :

Can Ship : Same Day (7 in stock)

Applications

Agricultural Spraying
