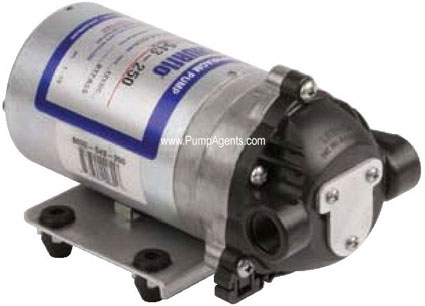

Model # 8000-053-210 - 24 VDC w/ Bypass
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-181-00
VOLTAGE: 24 VDC Nominal
PRESSURE SWITCH: None
BYPASS: 35 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 10 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Geolast
FASTENERS- Zinc Plated Steel
NET WEIGHT: 5.80 Lbs (2.6 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Road Roller Equipment
|
|
|
|
