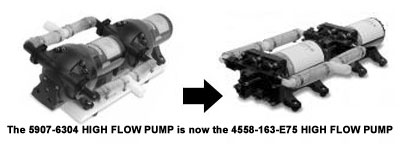

| Model # 5907-6304 High Flow Smart System (24 VDC) 10 GPM
| FEATURES
|
| Pump
Body: |
Nylon
|
|
Impeller: |
Santoprene
|
|
Shaft: |
EPDM
|
|
Ports: |
Quick Connect Fittings
|
|
Motor: |
24VDC Permanent Magnet, Intermittent Duty
|
|
|
|
|
|
APPLICATIONS |
• 2 Pump System, 1 x 24 VDC Extreme Smart Sensor 5.7 and 1 x Extreme ProBlaster, Manifold Assembly and Mounting Board.
• Flow Rate : up to 10.0 GPM [37.8 LPM]
• Shut-Off Pressure : 60 PSI [4.1 BAR]
• Voltage : 24 VDC
• Amps (Max) : 5/6
• Duty : Intermittent Duty
• Dimensions : 13.0" x 10.9" x 14.6" [330 x 276 x 370 mm]
• Pump # 1 Control : Micro processor PWM with Pressure Switch
Shut-Off: Voltage Variant, Factory Set at 65 PSI [4.4 Bar] @ 12VDC ± 5 PSI [0.4 Bar]
• Pump # 2 Control : Adjustable Switch. Shut-Off 45 PSI [3.1 Bar] ± 5 PSI [.4 Bar]
Restart 25 PSI [1.8 Bar] ± 5 PSI [.4 Bar]
• Liquid: 130 °F [54 °C] Max
• Prime: 6 feet [1.82 M]
• Inlet PSI: 30 PSI [2.1 Bar] Max
• Run Dry: Yes
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 16” [40 cm] Red +, 13” [33 cm] Black
• Fuse: Individual 10 Amp Recommended, Both 20 Amp Recommended
The Smart System is designed specifically for midsize and large yachts. Delivering 10 GPM and pressure up to 60 PSI, this micro-controller based variable speed and Extreme Pro-Blaster combination pumps precisely monitors your system’s water flow demand and adjusts the motor speed of the Smart Sensor maintaining the Extreme Pro-Blaster pump on stand by, eliminating the need for an accumulator tank.
|
|
|
|
| Available
Model # 5907-6304 High Flow Smart System (24 VDC) 10 GPM |
