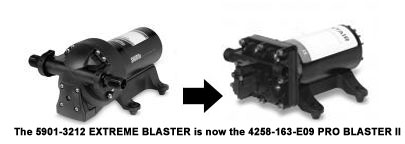

| Model # 5901-3212 Extreme ProBlaster Washdown Pump (24 VDC)
| FEATURES
|
| Pump
Body: |
Nylon
|
|
Impeller: |
Santoprene
|
|
Shaft: |
EPDM
|
|
Ports: |
Quick Connect Fittings
|
|
Motor: |
24VDC Permanent Magnet, Intermittent Duty
|
|
|
|
|
|
APPLICATIONS |
• Flow Rate : up to 5.3 GPM [20.1 LPM]
• Shut-Off Pressure : 45 PSI [3.1 BAR]
• Voltage : 24 VDC
• Amps (Max) : 6
• Duty : Intermittent Duty
• Dimensions : 9.25" x 5.0" x 5.50" [235 x 127 x 140 mm]
• Control : Adjustable Switch. Shut-Off 45 PSI [3.1 Bar] ± 5 PSI [0.4 Bar]
Restart 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]
• Liquid: 130 °F [54 °C] Max
• Prime: 6 feet [1.82 M]
• Inlet PSI: 30 PSI [2.1 Bar] Max
• Run Dry: Yes
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 16” [40 cm] Red +, 13” [33 cm] Black
• Fuse: 10 Amp Recommended
The Extreme Pro Blaster delivers over 5 GPM and pressure up to 45 psi, giving you the ultimate in washdown capabilities. This high volume pump will clean your deck quickly and easily. The corrosion resistant coated seamless motor shell with sealed switch provides excellent protection against the harsh marine environment. The Extreme Pro Blaster is designed for the toughest washdown applications.
Marine washdown installations. Other uses may included 24V DC pressurized water systems in cabins This pump may be used for general water transfer.
|
|
|
|
