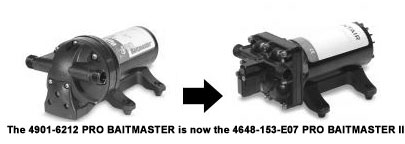

Model # 4901-6212 ProBaitmaster Heavy Duty Livewell Pump (12 VDC)
Shurflo Pumps
| FEATURES
|
| Pump
Body: |
Nylon
|
|
Impeller: |
Santoprene
|
|
Shaft: |
EPDM
|
|
Port Size: |
1/2”-14 NPSM-Male
|
|
Motor / Amp Draw: |
12VDC Permanent Magnet, Continuous Duty
|
|
|
|
|
|
APPLICATIONS |
• Tank Size (Gallons) : 35 and under
• Flow Rate : up to 4.0 GPM [15.1 LPM]
• Shut-Off Pressure : 45 PSI [3.1 BAR]
• Voltage : 12 VDC
• Amps (Max) : 9
• Duty : Continuous Duty
• Dimensions : 9.25" x 5.3" x 5.0" [235 x 136 x 127mm]
• Control : Adjustable Switch. Shut-Off 45 PSI [3.1 Bar] ± 5 PSI [0.4 Bar]
Restart 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]
• Liquid: 130 °F [54 °C] Max
• Prime: 6 feet [1.82 M]
• Inlet PSI: 30 PSI [2.1 Bar] Max
• Run Dry: Yes
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 16” [40 cm] Red +, 13” [33 cm] Black
• Fuse: 15 Amp Recommended
The Pro Baitmaster is excellent for livewell or washdown application in harsh marine environments. The SHURCote seamless motor shell and sealed switch protects the pump from splashed liquids.
For Marine bait and livewell installation. Other uses may include 12 VDC pressurized water systems. This pump may be used for general water transfer.
|
|
|
|
|
