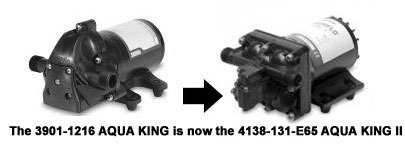

Model # 3901-1216 Aqua King Standard 3 GPM (24 VDC) Fresh Water Pump
Shurflo Pumps
| FEATURES
|
| Pump
Body: |
Polypro
|
|
Impeller: |
Santoprene
|
|
Shaft: |
EPDM
|
|
Port Size: |
1/2”-14 NPSM-Male
|
|
Motor / Amp Draw: |
24VDC Permanent Magnet, Intermittent Duty
|
|
|
|
|
|
APPLICATIONS |
• Flow Rate : up to 3.0 GPM [11.35 LPM]
• Shut-Off Pressure : 55 PSI [3.8 BAR]
• Voltage : 24 VDC
• Amps (Max) : 3
• Duty : Intermittent Duty
• Dimensions : 7.3" x 5.0" x 4.6" [184 x 127 x 118 mm]
• Control: Adjustable Switch. Shut-Off 55 PSI [3.8 Bar] ± 5 PSI [0.4 Bar]
Restart 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]
• Liquid: 130 °F [54 °C] Max
• Prime: 6 feet [1.82 M]
• Inlet PSI: 30 PSI [2.1 Bar] Max
• Run Dry: Yes
• Protection: Thermal Overload, Automatic Restart
• Leads: 16 AWG, 16” [40 cm] Red +, 13” [33 cm] Black -
• Fuse: 5 Amp Recommended
Multi-fixture marine fresh water installation. Other uses may included 24V DC pressurized water systems in cabins. This pump may be used for general water transfer.
|
|
|
|
|
