Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

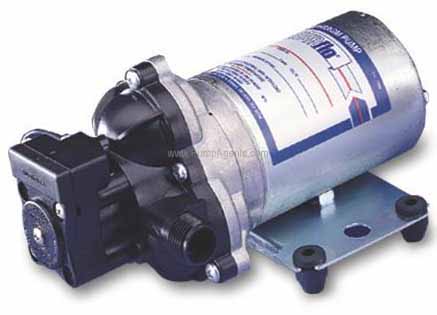

Model # 2088-594-154BX - Diaphragm Pump

FEATURES
APPLICATIONS
MODEL NUMBER: 2088-594-154
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-150-10, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable from 30 to 50 PSI.   Factory Set @ 45 PSI Shut-Off,
Turn On 25 5 PSI
LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2" - 14 Male Parallel Thread
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Santoprene
    DIAPHRAGM - Santoprene
    FASTENERS - Zinc Plated Steel
NET WEIGHT: 5.1 Lbs (2.31 Kg)
DUTY CYCLE: Intermittent (See Temp. Rise Chart)
TYPICAL APPLICATIONS: Water Delivery
APPROVALS: NSF Listed, UL/CSA Recognized Component

Available Model # 2088-594-154BX - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
2088-594-154BX Pump and Motor Unit, 115Volt AC, 3.3 GPM open flow, Santoprene valves, Santoprene diaphragm, 45 PSI Demand Switch, 1/2" MSPT ports (1/2" - 14 National American Straight Pipe Thread, requires SHURflo swivel type fittings), Poly Housing $ 187.05 Qty. 3 Weeks
(out of stock)
