Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

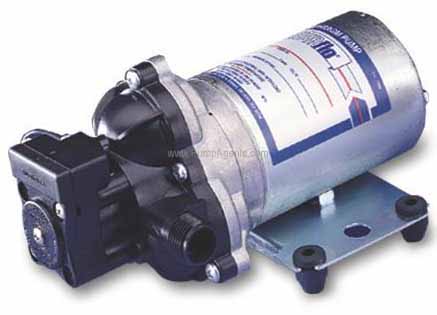

Model # 2088-564-114 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)

FEATURES
APPLICATIONS
MODEL NUMBER: 2088-564-114
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 3.0 Degree
MOTOR: Permanent Magnet, P/N 11-201-00, Thermally Protected
VOLTAGE: 230 VAC Nominal
PRESSURE SWITCH:   Factory Set @ 45 PSI Shut-Off, Turn On 25 5 PSI
LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 1/2" - 14 Male Parallel Thread
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Santoprene
    DIAPHRAGM - Santoprene
    FASTENERS - Zinc Plated Steel
NET WEIGHT: 5.0 Lbs (2.27 Kg)
DUTY CYCLE: Intermittent (See Temp. Rise Chart)
TYPICAL APPLICATIONS: Water Delivery
APPROVALS: CE / EMI / RFI FILTER

Available Model # 2088-564-114 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
2088-564-114

download_icon Datasheet
Pump and Motor Unit, 230 VAC Nominal, 45 SW PSS 3.0R 3.3G 1MPF A $ 291.45 Qty. 3 Weeks
(out of stock)
