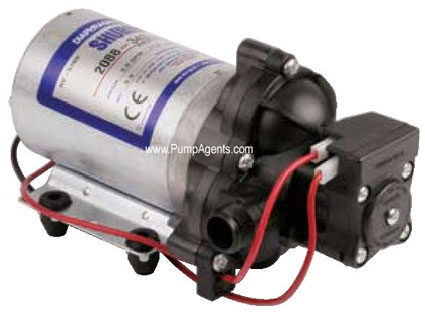

Shurflo 2088-414-534 Automatic Diaphragm Industrial Pump

Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump Note: Pump is coated with a plastic compound for improved corrosion resistance.

Pressure Switch: Splash-Proof, Adjustable from 30 to 50 PSI.. Factory Set at 45 PSI Shut-Off, Turn On 25 PSI

Bypass: 100 PSI Bypass Springs

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.

Prime: Self-Priming Up To 9.0 Ft. Vertical

Weight: 6.0 Lbs (2.7 Kg)

Duty Cycle: Continuous

Approvals: U.L. Marine Listed

Features :

Pump Body:

Polypropylene

Impeller:

Santoprene

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Motor Specs :

12 Volt DC, Permanent Magnet, P/N 11-185-06, Thermally Protected.
