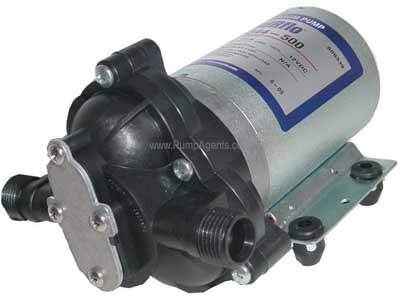

Shurflo # 2088-344-500 Diaphragm Pump with Bypass - 12 VDC

Shurflo Pump 2088-344-500

Shurflo # 2088-344-500

Shurflo catalog # 2088-344-500, Diaphragm Pump with 12 Volt DC Motor and Bypass. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread. 3.3 GPM open flow.

Price : $ 546.08

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

BYPASS : A bypass pump may be used in application that would normally induce frequent start/stop of the motor, and thereby create a potential for overheating. Models equipped with an internal bypass are designed to pump at high pressure while at low flow rates. Bypass models equipped with a switch may operate for several seconds even though the discharge side has been closed off. Models equipped with a bypass only will continue to run until power is turned OFF.

Features :

Pump Body:
Polypropylene
Impeller:
Viton
Shaft:
Santoprene
Port Size:
Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-111-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 2088-344-500


Valve Assembly Kit :

Catalog # 94-232-05, VITON VALVES 2088-XXX

Price: $ 76.00

Qty :

Can Ship : Same Day (2 in stock)


Diaphragm/Drive Kit :

Catalog # 94-238-03, DIAPHRAGM KIT

Price: $ 44.01

Qty :

Can Ship : Same Day (12 in stock)


Upper Housing Assembly Kit :

Catalog # 94-238-00, Upper Housing for Non-Switched Pump

Price: $ 58.21

Qty :

Can Ship : Same Day (4 in stock)

Applications

Agricultural Spraying
