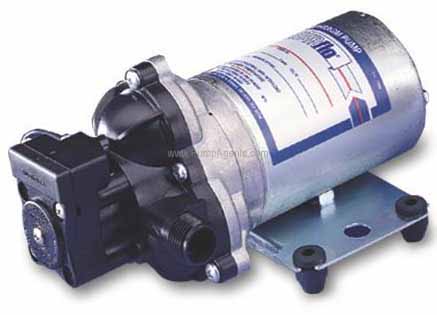

Model # 2088-343-554 - Diaphragm Pump

Shurflo Pump 2088-343-554

Shurflo # 2088-343-554

Shurflo catalog # 2088-343-554, Pump and Motor Unit, 24V 45 SW PVS 3.0R 3.5G 1LZW A

Price : $288.19

Qty :

3 Weeks (out of stock)



Features


Applications

MODEL NUMBER 2088313544 PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1122606, Thermally Protected VOLTAGE 12 VDC Nominal PRESSURE SWITCH SplashProof   Factory Set 45 PSI ShutOff, Turn On 25 PSI 5 PSI LIQUID TEMPERATURE 130 Degrees Fahrenheit 54 Degrees Centigrade Max. PRIME SelfPriming Up To 8 Ft. Vertical,     Max. Inlet Pressure 30 PSI PORTS 1/2"14 Male Parallel Thread MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Stainless Steel NET WEIGHT 6.0 Lbs 2.7 Kg DUTY CYCLE Continuous See Temperature Rise Chart TYPICAL APPLICATIONS Ag Transfer / Spray
