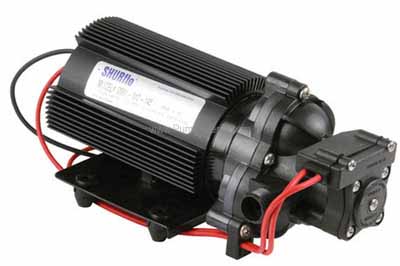

Model # 2088-313-145BX - Diaphragm Pump

Shurflo Pump 2088-313-145BX

Shurflo # 2088-313-145BX

Shurflo catalog # 2088-313-145BX, Pump and Motor Unit, 12 Volts DC, 45 SS PVS 3.0R 3.5G 1LPW S

Price : $322.99

Qty :

3 Weeks (out of stock)



Features


Applications

MODEL NUMBER 2088313145 PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump s 9.90 251 5.00 126 1.72 REF 43 PumpAgents.com buy pumps and parts online CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1118506, Thermally Protected VOLTAGE 12 VDC Nominal PRESSURE SWITCH Adjustable from 30 to 50 PSI.   Factory Set 45 PSI ShutOff, Turn On 25 PSI 5 PSI LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 8.0 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 1/2"14 Male Parallel Thread MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Stainless Steel NET WEIGHT 6.8 Lbs 3.1 Kg DUTY CYCLE Continuous See Temperature Rise Chart TYPICAL APPLICATIONS Agricultural Spraying
