Model # 100-030-20 - 24 VDC Single fixture Delivery pump

Shurflo Pump 100-030-20

Shurflo # 100-030-20

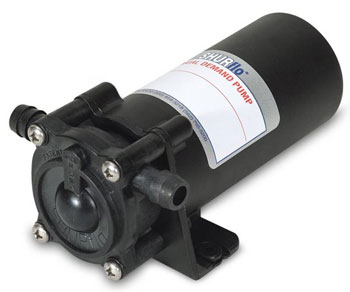

Shurflo catalog # 100-030-20, Single fixture Delivery pump, 1 GPM open flow, 24 VDC, 3/8" Hose Barb, Enclosed Motor.

Price : $66.50

Qty :

3 Weeks (out of stock)



Features


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 3.0 Degree CHECK VALVE 1Way Operation Prevents Reverse Flow MOTOR Permanent Magnet, P/N 1115010, Thermally Protected VOLTAGE 115 VAC Nominal PRESSURE SWITCH Factory Set Shutoff 45 PSI, Turn On 25 PSI / 5 PSI LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 9 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 1/2" 14 Male Parallel Thread MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Viton Switch, Santoprene Main     FASTENERS Zinc Plated Steel NET WEIGHT 5.2 Lbs 2.36 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Agricultural Spraying UL Recognized Component
