• DESIGN: Pump parts are constructed of bronze, stainless steel (17-7, 303 and/or 18-8), vellumoid, graphite, carbon, ceramic, and Buna-N.
Uses: For use with non-particulate and non-abrasive fluids compatible with pump construction component materials.
• VISCOSITY: Standard pump models (at 1750 RPM) will handle viscosity up to 500 SSU. For 1000 - 10,000 SSU use 900 RPM motor speed max. Please consult our Gear Pump selection guide (click here) for selection assistance.
• PRESSURES: Maximum pressure to 125 PSI and working casing pressure to 200 PSI. *Maximum Inlet Booster Pressure is 50 PSI (gears will start to flex if pressure on the inlet side exceeds 50 PSI, causing excessive wear).
• SELF PRIMING: Max. Suction Lift of 20 feet a 1750 RPM, and 9 feet at 900 RPM. Suction lift requires wetted gears and primed seal chamber.
• TEMPERATURES: Recommended for liquid temperatures from 32 ° to 140° F.

USES :

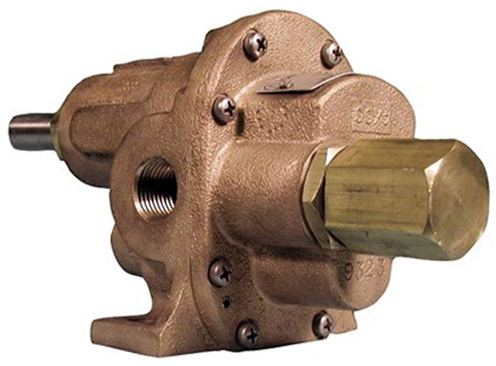

Oberdorfer self-priming, positive displacement, external rotary gear pumps operate bi-directionally (reversible) and provide nearly pulseless flow for a wide range of industrial, marine, agricultural, and commercial chemical-duty applications. Pedestal Pumps are for custom Base Mounted long coupled installations.

NOTICE :
Do not use to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do not use in flammable and/or explosive atmospheres. When pumping hazardous or dangerous materials, use only in a room or area designated for that purpose. For your protection, always wear proper clothing, eye protection, etc. in case of any malfunction. For proper handling techniques and cautions, contact your chemical supplier, insurance company and local agencies (fire dept., etc.). Failure to comply with this warning could result in personal injury and/or property damage.
