Oberdorfer # 101MPS-10F57 Bronze Centrifugal Pump and Motor 1/3 HP

Oberdorfer Pump 101MPS-10F57

Oberdorfer # 101MPS-10F57

Oberdorfer catalog # 101MPS-10F57, Bronze Centrifugal Pump and motor unit, Bronze construction, Bronze impeller, Stainless Steel Shaft, Viton Mechanical Seal. Motor is 1/3 Horsepower, 3450 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof). Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.

Price : $ 1432.02

Qty :

Same Day (2 in stock)



Product Information :

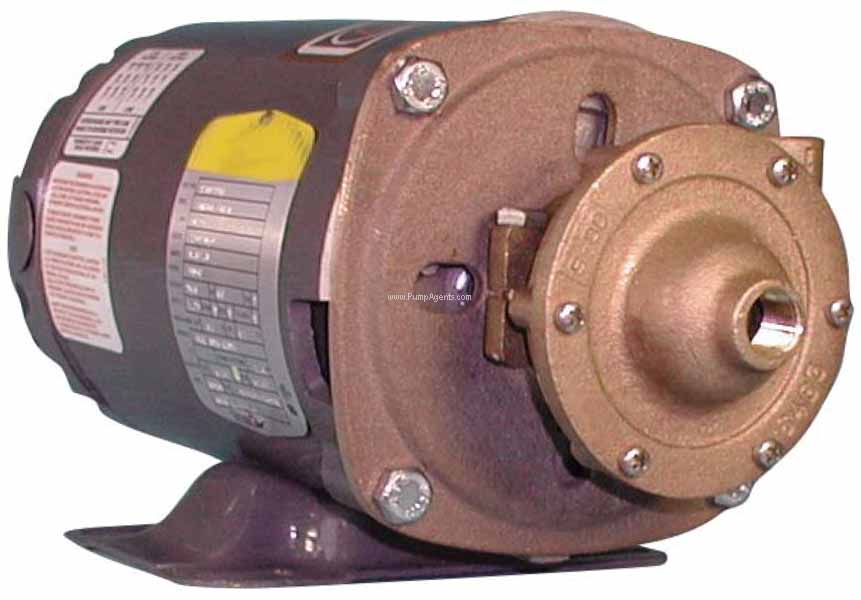

The Oberdorfer 101MPS-10F57 is a Bronze Centrifugal Pump and motor unit, with Bronze Impeller, Viton Mechanical Seal, Stainless Steel shaft, 3/8 Inch NPT Inlet by 3/8 Inch NPT Outlet Ports, close coupled to a 1/3 Horsepower, 3450 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof) Motor. This close-coupled pump and motor unit uses a standard NEMA 56J Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. It has a three phase motor that must be checked out for proper rotation when pump is installed, which is counter-clockwise looking at inlet end of pump. Interchanging of any 2 wires in a 3-phase system will reverse motor rotation. The pump uses a mechanical type shaft seal with a Viton rubber element. It is suitable for water, severe solvents, difficult chemicals, and elevated temperatures. This long-life centrifugal pump delivers high flows up to 9 GPM with a maximum pressure of 12 psi. These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
Stainless Steel
Shaft Seal:
Viton Mechanical Seal
Port Size:
Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.
Motor Specs :
1/3 Horsepower, 3450 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof).

Parts and Accessories for Oberdorfer model 101MPS-10F57


Impeller :

Catalog # 7718, 3PH IMPELLER FOR 101MP

Price: $ 121.00

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 32210, Seal Assy FKM

Price: $ 187.00

Qty :

Can Ship : Same Day (6 in stock)

Applications

There are many applications that the Oberdorfer 101MPS10F57 are used in. This pump is typically used as a standard pump in the Marine Air Conditioning Industry. The special pump alloys used in this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped, however, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions. Designed for continuous lowpressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other generalpurpose pumping compatible with pump component materials where no suction lift or no selfpriming is required. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.
