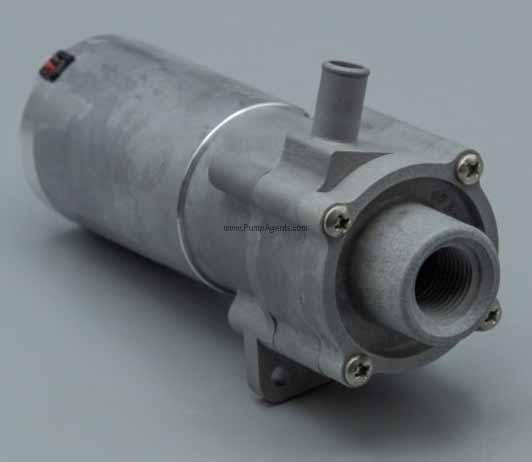

893-07 Brushless Series - 12 VDC
March Pumps
• Parts List & Parts Prices for this Pump
• Order Parts
| FEATURES
|
| Pump
Body: |
Noryl Plastic
|
|
Impeller: |
Nylon & Ceramic
|
|
Shaft: |
Spindle is 316 Stainless Steel
|
|
Shaft Seal: |
none - Sealless Magentic Drive, "O"-Ring is Buna N
|
|
Port Size: |
3/8" FPT Inlet x 3/8" OD Outlet
|
|
Motor / Amp Draw: |
1/150 HP (.004kw), 4000 rpm, 12- or 24-volt DC, air-cooled, brushless motor, rated at 50,000 hours. The 12-volt brushless motor will operate between 7 & 14 volts, the 24-volt brushless motor will operate between 12 to 28 volts.
|
|
Pressure Switch Setting: |
2 lb. Approx.
|
|
|
|
|
|
APPLICATIONS |
|
Designed to operate at 12 or 24 volts DC, March Series 893 pumps are small in physical size and can deliver a maximum of up to 3.0 GPM (11 LPM) and can develop pressures up to 4.5 PSI (.31 BARS). All Series 1 pumps are capable of serving applications with a maximum head of 10.5 ft. (3.3m) at zero GPM.
|
|
|
|
|
