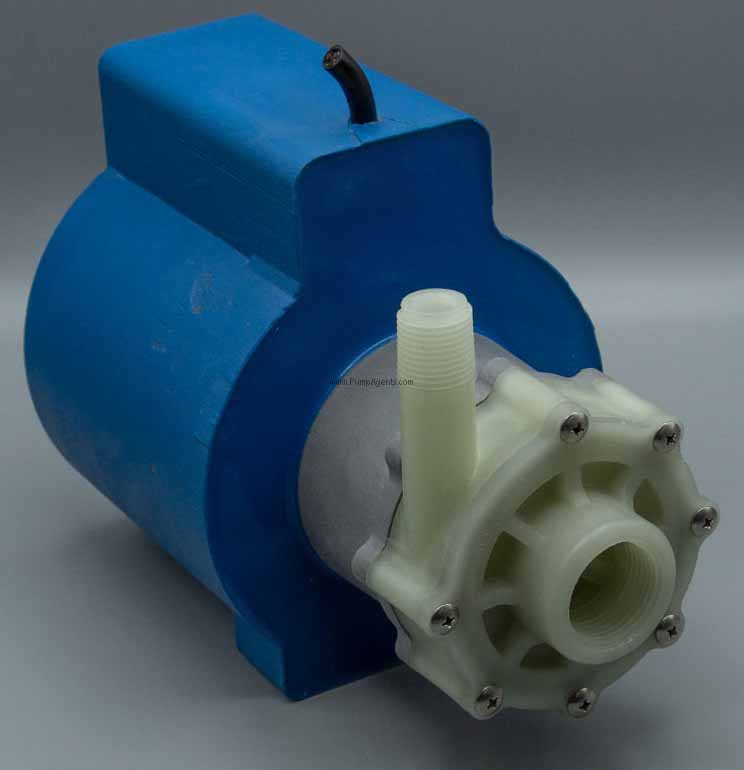

5C-MD Series
March Pumps
• Parts List & Parts Prices for this Pump
• Order Parts
| FEATURES
|
| Pump
Body: |
Polypropylene
|
|
Impeller: |
Polypropylene
|
|
Shaft Seal: |
none - Sealless Magentic Drive, "O"-Ring is Buna N
|
|
Port Size: |
1" FPT Inlet x 1/2" MPT Outlet
|
|
Motor / Amp Draw: |
1/8 HP, 2800 rpm, 115-volt or 230-volt single phase, 50/60 Hz., Submersible (Blue epoxy color)
|
|
Pressure Switch Setting: |
19 lb. Approx.
|
|
|
|
|
|
APPLICATIONS |
March Series 5 pumps are ideal for a wide variety of applications involving highly corrosive chemicals, such as film processor chemical recirculation, refrigerators, small scrubbers and detergent mixers. Models constructed of KynarŪ are typically used in the plating industry to pump strong halogen solutions and concentrated chromic or sulfuric acids. They are also excellent choices for computer cooling, carbon arc furnace cooling and marine air conditioners.
Series 5 pumps are rated up to 18 GPM (60.5 LPM) flow and for heads up to 29 ft. (6.3m)
|
|
|
|
|
5C-MD Series |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
