March # 0135-0088-0200 Mag-Drive Centrifugal Pump and Motor 1/5 HP

March Pump 0135-0088-0200

March # 0135-0088-0200

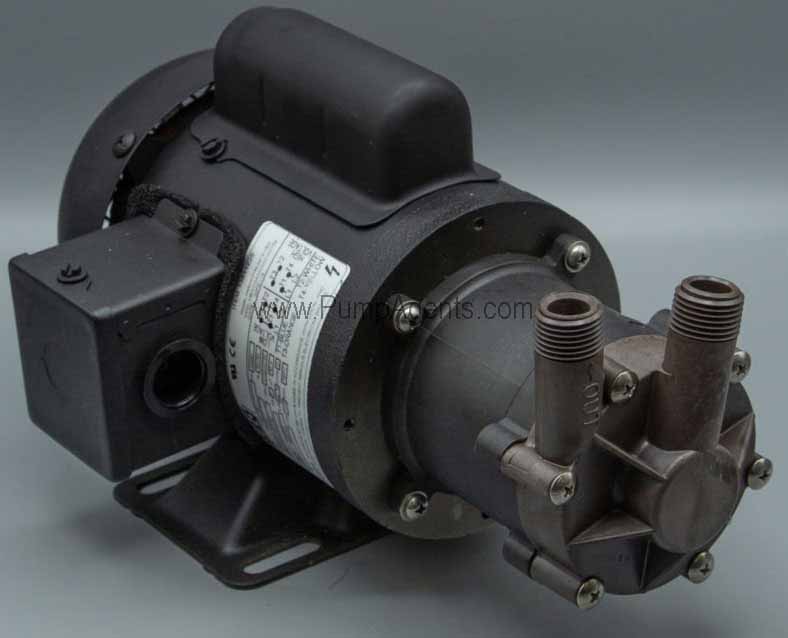

March catalog # 0135-0088-0200, Centrifugal Magnetic Drive Pump and Motor unit, with Ryton front and rear housing, Ryton impeller, Ceramic shaft, Ceramic thrust washer, Viton o-ring. Motor is 1/5 Horsepower, 3450 RPM, 115/230 Volts AC, Single Phase, XP. Inlet Port is 1/2 inch Male NPT Inlet, Discharge Port is 1/2 inch Male NPT Outlet. Rated up to 10 GPM. Model # TE-MDX-MT3 XP 1PH.

Price : $ 2070.60

Qty :

Same Day (2 in stock)



Product Information :

The March 0135-0088-0200 is a Centrifugal Magnetic Drive Pump and Motor unit, with Ryton front and rear housing, Ryton impeller, Ceramic shaft, Ceramic thrust washer, Viton o-ring, 1/2 inch Male NPT Inlet by 1/2 inch Male NPT Outlet Ports, and is coupled to a 1/5 Horsepower, 3450 RPM, 115/230 Volts AC, Single Phase, XP Motor. This pump is a centrifugal magnetic drive pump, which eliminates the need for a shaft seal. This seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 1 foot, and its maximum head is 17 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-MDX-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. This pump is not self-priming, and lacks a suction lift, and requires a flooded suction - the liquid must flow naturally to the pump. It cannot be run dry because the impeller requires the liquid being pumped for lubrication. Do not operate the pump until liquid is inside of the pump and ever run the pump dry. The motor on this pump is U.L. listed and rated for continuous duty. Rated performance capacity is up to 10 GPM open flow, and up to 17 feet total dynamic head. At the maximum head of 17 feet, the flow will be lower than the rated capacity of 10 GPM. The maximum temperature for this pump is 200 degrees F.

Features :

Port Size:
Inlet Port is 1/2 inch Male NPT Inlet, Discharge Port is 1/2 inch Male NPT Outlet .
Motor Specs :
1/5 Horsepower, 3450 RPM, 115/230 Volts AC, Single Phase, XP.

Applications

There are many applications that the March 013500880200 are used in. Typical applications for this pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning. The TEMDXMT3 has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide Caustic Soda, Fresh Water, Salt Water, DI Water, and many more chemicals. Liquids containing ferrous metal fines should not be pumped. This pump may have to be modified to pump liquids or chemicals with specific gravities, viscosities, or elevated temperatures different then ambient water. A magnetic drive pump is sealless, preventing any leakage that is normally associated with a conventional seal pump. Not only does the absence of a seal prevent the leakage of potentially dangerous and expensive liquids, it reduces maintenance time spent on the pump. In any magnetic drive pump, there are only two moving parts, the drive magnet and the impeller. With only two moving parts, there is little to break in the pump, and this pump is serviceable with a screwdriver. The simpler the pump, the less chance there is for failure. A magnetic drive pump is your answer to for a long lasting, dependable, reliable pump. Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.

Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
