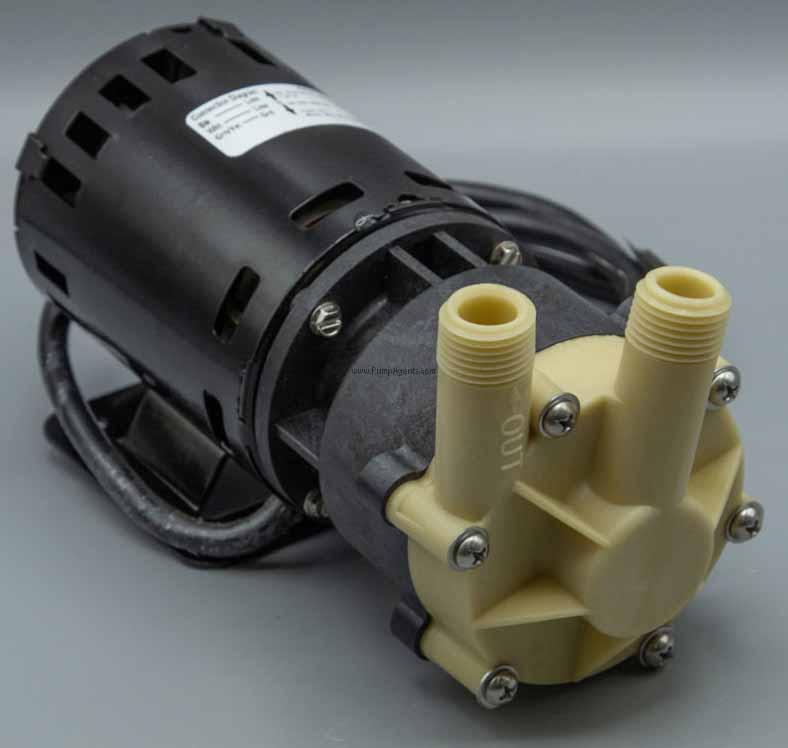

MDK-MT3 Kynar Series
March Pumps
| FEATURES
|
| Pump
Body: |
Kynar
|
|
Impeller: |
Kynar
|
|
Shaft: |
Spindle is Ceramic
|
|
Shaft Seal: |
none - Sealless Magentic Drive, "O"-Ring is Viton
|
|
Ports: |
1/2" MPT Inlet x 1/2" MPT Outlet
|
|
Motor: |
1/25 HP, 3400 rpm, 115-volt or 230-volt single phase, 50/60 Hz., air-cooled
|
|
Weight: |
6 lb. Approx.
|
|
|
|
|
|
APPLICATIONS |
|
Series MDX pumps can deliver a maximum flow of 8.4 GPM (38 LPM), are capable of serving applications with a maximum head of 19 ft. (4m). Applications include coffee dispensers, aquariums, bio-medical, dryers, ice makers, electrostatic painting, photographic processing, and vending equipment. March "ORBITAL" Magnetic Drive Pumps eliminate the conventional shaft seals found in most pumps. This means that there is no rotating seal to wear and allow the liquid being pumped to leak out. There are only two areas in this type construction that rotate and could wear out. One area is the motor shaft and bearings. The second area is the impeller rotating on a stationary spindle, and hence these are the only two areas where wearing can occur. DO NOT RUN DRY : The pumps should not be run dry for more than 60 seconds as the plastic impeller will squeal and bind onto the stationary spindle.
|
|
|
|
