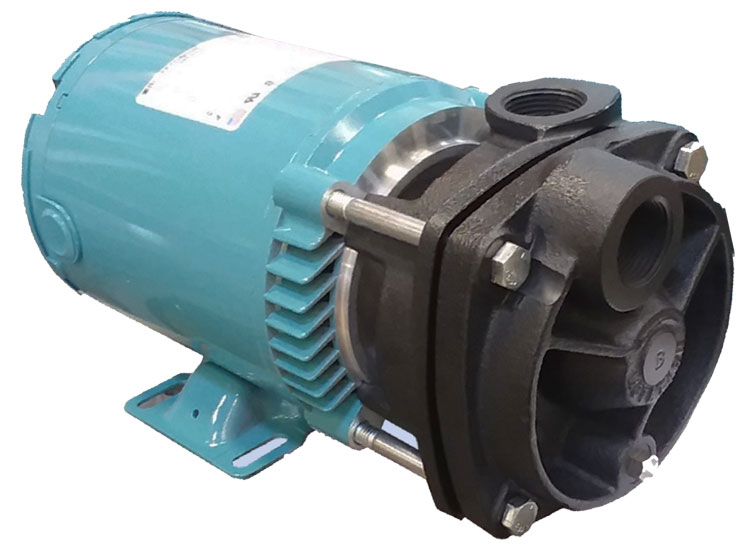

T41E Series - Cast Iron Bronze fitted - 7 GPM
MTH Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
3450 RPM Pump Performance :
Gallons per Minute at PSI
(HP horsepower is in brackets) | 50
PSI | 100
PSI | 150
PSI | 200
PSI | 250
PSI | 7.8
GPM
(3/4) | 6.2
GPM
(3/4) | 4.5
GPM
(1) | 3.2
GPM
(1-1/2) | N/R | Performance Limitations
• Discharge Pressure : 300 PSI
• Seal Pressure : 200 PSI
• Suction Pressure (Min) : 26” Hg Vac.
• Speed : 3600 RPM
• TemperatureStandard Construction : -20° F / +230° F
(Ceramic Seal Seat-Water) :
Pump Construction (Bronze Fitted Cast Iron) :
• Motor Bracket : Cast Iron
• Cover : Cast Iron
• Impeller : Bronze
• Sleeve/Bushing : Bronze
• “O”Rings : Buna-N (standard)
• Seals : Buna/Ceramic (standard)
• Seats : Buna/Carbon (standard)
• Shaft : 304 Stainless Steel
Close-coupled and pedestal mounted regenerative turbine pumps represent the most economical, high performance alternative for low flow clean fluid applications involving moderate to high pressures (heads to 600 feet).By combining the latest concepts in hydraulic turbine pump design with precision computer controlled manufacturing, the T41 Series pumps deliver high efficiency operation even at low NPSH. Costs are controlled by efficient manufacturing processes and highly optimized pump designs. Maintenance costs are kept to a minimum by combining an easily serviceable design with the use of high quality components to provide long life.
|
|
|
|
