MP # 31925 Chemflo 8 Pump Pack pump end only

MP Pump 31925

MP # 31925

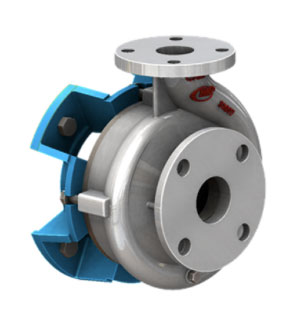

MP catalog # 31925, Chemflo 8 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, Stainless Steel construction, 7.95 inch diameter impeller. Inlet Port is 3 inch, Discharge Port is 1-1/2 inch 150 lb. ANSI flange.

Price : $ 4009.57

Qty :

Same Day (1 in stock)



Product Information :

The MP 31925 is a Stainless Steel Chemflo 8 series Centrifugal Chemical Pump Pack pump end only for mounting on a motor, with 7.95 inch Diameter Impeller, 3 inch by 1-1/2 inch 150 lb. ANSI flange Ports, replacement pump end only without a Motor. This long-lasting chemical pump can meet most duty points by flowing up to 350 GPM and reaching a total head upwards of 290 feet. Variations for the mechanical seal are available for the CHEMFLO 8 CC end suction centrifugal pump, ensuring it works efficiently when applied to any industry. The ChemFlo 8 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo 8 to meet most duty points up to 350 GPM and total head up to 290 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal. ChemFlo 8 pumps are offered in two configurations, pump (with motor) and PumPAK (without motor) versions. Motors available are 145TC, 184TC, 215TC, 256TC, and 286TSC. If ordering a PumPAK please note that the electric motor must have a base.

Features :

Pump Body:
Stainless Steel
Impeller:
7.95 inch Diameter
Port Size:
Inlet Port is 3 inch, Discharge Port is 1-1/2 inch 150 lb. ANSI flange.
Motor Specs :
Horsepower.

Applications

Typical applications for the Gardner Denver MP model 31925 are Agricultural, Commercial, Industrial, Marine, OEM.
