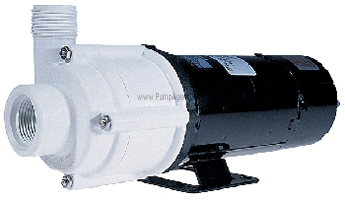

3-MDIX-SC Series
Little Giant Pumps
•  Product Data Sheet (Performance & Dimensions)
• Operation & Maintenence Manual (O & M)
| FEATURES
|
| Pump
Body: |
Glass-filled Polypropylene, & Ceramic
|
|
Impeller: |
Glass-filled Polypropylene
|
|
Shaft: |
Ceramic
|
|
Shaft Seal: |
None , sealless pump, O-Ring is Nitrile
|
|
Port Size: |
Intake : 1" FNPT, Discharge : 1" MNPT
|
|
Motor / Amp Draw: |
1/15 HP, 115 Volt Single Phase. Thermally Protected, Totally Enclosed,Permanent Split Capacitor Motor. c/w 6" Power Cord with 3-Prong Plug.
|
|
Pressure Switch Setting: |
Approx. 9.2 Lbs.
|
|
|
|
|
|
APPLICATIONS |
|
The Little Giant MD-SC series features leakproof, seal-less magnetic drives and are designed for in-line, nonsubmersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemicalresistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service.Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supportedat both ends to prevent impeller damage during start-up and stop of pump.
|
|
|
|
|
3-MDIX-SC Series |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
