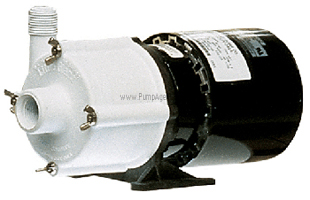

TE-3-MD Series
Little Giant Pumps
•  Product Data Sheet (Performance & Dimensions)
| FEATURES
|
| Pump
Body: |
Glass-filled Polypropylene, & Titanium
|
|
Impeller: |
Glass-filled Polypropylene w/ Ceramagnet "A" (Barium Ferrite)
|
|
Shaft: |
Titanium
|
|
Shaft Seal: |
None , sealless pump, O-Ring is Nitrile
|
|
Port Size: |
Intake : 1/2" FNPT, Discharge : 1/2" MNPT
|
|
Motor / Amp Draw: |
1/20 HP, 230 Volt Single Phase. Thermally Protected, Totally Enclosed, Fan-Cooled Motor. c/w 6" Power Cord with 3-Prong Plug(No plug on 230V).
|
|
Pressure Switch Setting: |
Approx. 8.0 Lbs.
|
|
|
|
|
|
APPLICATIONS |
|
The Little Giant MD series features leakproof, seal-less magnetic drives and are designed for in-line, nonsubmersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance.Impeller is glass-filled polypropylene and Ceramagnet "A" (Barium Ferrite). Shaft and thrust washers areTitanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced withno special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up andstop of pump.
|
|
|
|
