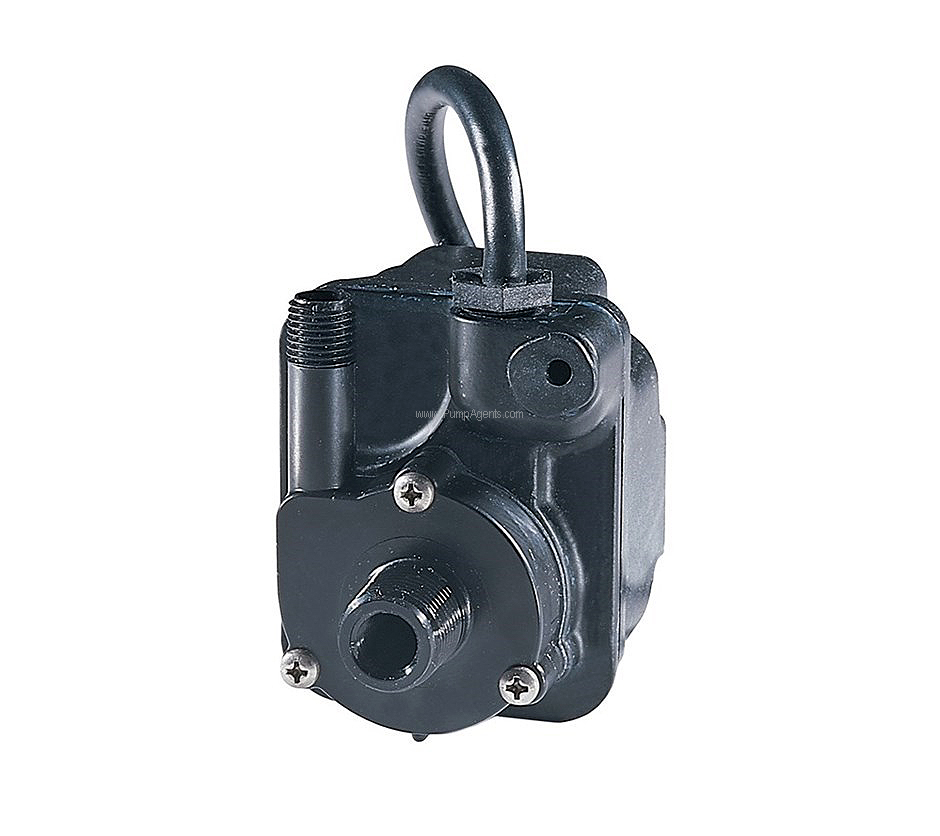

1-EA-42 Series
Little Giant Pumps
•  Product Data Sheet (Performance & Dimensions)
• Operation & Maintenence Manual (O & M)
• Parts List & Parts Prices for this Pump
• Order Parts
| FEATURES
|
| Pump
Body: |
Glass filled polyester, Epoxy coated cast aluminum & Nylon.
|
|
Impeller: |
Nylon
|
|
Shaft: |
SST
|
|
Shaft Seal: |
Viton
|
|
Port Size: |
Intake — 1/2" MNPT & 1/4" FNPT, Discharge — 1/4" MNPT
|
|
Motor / Amp Draw: |
1/125 HP, 115 Volts, w/ 10" Power Cord. For submersible or in-line use.
|
|
Pressure Switch Setting: |
Approx. 3.2 Lbs.
|
|
|
|
|
|
APPLICATIONS |
|
Dual purpose epoxy encapsulated pump that may be used totally submersed or in-line (fed with pipe of hose).For commercial, industrial and home applications including statuary fountains, water displays, air conditioners,machine tool coolants and many other applications where liquid must be transferred of recirculated. Thiscompact 170GPHpump features a 1/4"MNPTdischarge and 7" shut-off head capability.
|
|
|
|
| Available
1-EA-42 Series |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
