Jabsco # SP6080-0423 Wave Spring Mechanical Seal Carbon/Stainless Steel

Jabsco Pump Parts SP6080-0423

Jabsco # SP6080-0423

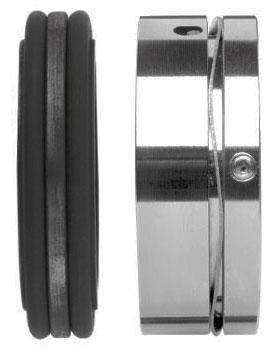

Jabsco catalog # SP6080-0423, Hygienic pinned Mechanical Shaft Seal, wave spring type, with Carbon on Stainless Steel rotary faces.

Price : $ 560.51

Qty :

Same Day (2 in stock)



Product Information :

The Jabsco seal # SP6080-0423 is a Hygienic pinned Mechanical Shaft Seal, wave spring type, with Carbon on Stainless Steel rotary faces. This is a high quality mechanical shaft seal designed to prevent leakage of product from the pump into the atmosphere and to prevent contamination by airborne micro-organisms. The seal design has a simple cartridge design and set-up, and is externally mounted into the rear of the rotor case which means that the drive collar, locating screws and wave spring are outside of the product, this ensures that good hygiene levels may be achieved for maximum cleanliness. The rotary seal face is driven by 2 pins that locates in slots in the drive collar. This means that the seal can be run equally well in both directions of rotation. This anti-rotation pin in the seal seat allows use on high viscosity products, and allows bi-directional rotation. The Carbon/Stainless Steel seal faces are energized by a simple wave spring, which is used to keep the rotary and static seal faces in contact at low pressures. At higher pressures the static seal seat pistons backwards and forces the rotary face, mounted on the shaft, back against the drive collar. This compresses the wave spring and eliminates fatiguing of the spring.


Applications:

This single Carbon on Stainless-Steel seal is suitable for many clean fluids which do not require a more sophisticated seal. Typical liquids this seal is used with are those which are non-toxic and non hazardous, have some lubricating properties that have a viscosity less than 150,000 centipoise, and liquids that are NOT highly abrasive. Liquids that are pumped at a temperature less than 180 degrees C (356 degrees F), and are not excessively temperature sensitive and do not degrade when heated by the friction of the seal faces. You can use this where you not require steam or a sterile fluid (aseptic) barrier, and with liquids that do not change state in contact with air, and liquids that do not form a film, dry out or precipitate solids.

Seal Design:

These seals use proven, very effective designs, highly utilized in many applications. The seal design has a simple cartridge design and set-up, and is externally mounted into the rear of the rotor case which means that the drive collar, locating screws and wave spring are outside of the product, this ensures that good hygiene levels may be achieved for maximum cleanliness. The rotary seal face is driven by 2 pins that locates in slots in the drive collar. This means that the seal can be run equally well in both directions of rotation. This anti-rotation pin in the seal seat allows use on high viscosity products, and allows bi-directional rotation. The Carbon/Stainless Steel seal faces are energized by a simple wave spring, which is used to keep the rotary and static seal faces in contact at low pressures. At higher pressures the static seal seat pistons backwards and forces the rotary face, mounted on the shaft, back against the drive collar. This compresses the wave spring and eliminates fatiguing of the spring.|
