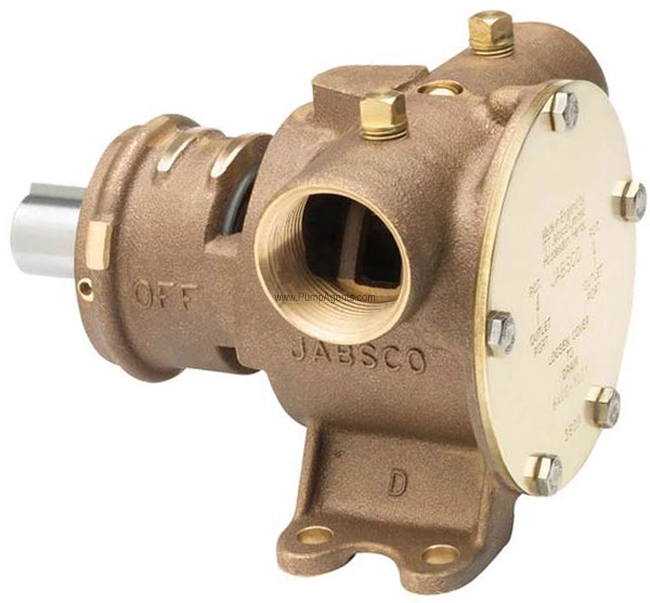

Jabsco # 6400-0004 Full Cam Standard Shaft Engine Cooling Pump

Jabsco Pump 6400-0004

Jabsco # 6400-0004

Jabsco catalog # 6400-0004, Full Cam Standard Shaft Engine Cooling Pump. Bronze Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/4 Inch NPT Internal.

Price : $ 698.44

Qty :

Same Day (6 in stock)

Click Here for PARTS



Product Information :

The Jabsco 6400-0004 is a bronze Flexible Impeller engine cooling pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 1-1/4 Inch NPT Internal Ports, bare shafted pedestal pump end only. This pump has a nominal flow rate of 235 Litres/min (62 gallons/min) at 1750rpm, and primes at low or high speeds. For a vertical dry suction lift of 10 feet (3.0mm), a minimum of 800 RPM is required. Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. The Neoprene impeller in this pump is good for water and general-purpose pumping, if there is any oil in the water please use the Nitrile impeller - see parts list. This flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds, can be mounted at any angle and pumps in either direction with equal efficiency. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover). This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The Temperature limits for the Neoprene impeller in this pump is 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). For continuous operation, pressure should not exceed 30 psi. For intermittent service only, pressures from 35 to 50 psi can be attained using 807-1001 high pressure impeller, plus an extra gasket.

Features :

Pump Body:
Bronze
Impeller:
Neoprene
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1-1/4 Inch NPT Internal

Product Specs :

62 GPM .

Double row ball bearing.

Self-priming up to 10 feet vertical lift.

Mechanical seal.

Constructed from marine quality bronze and stainless steel

Easy to service and maintain

Will tolerate abrasive wear

Handles hard and soft solids without clogging

Can pump in either direction

Will not airlock


Parts and Accessories for Jabsco model 6400-0004


Major Overhaul Kit / Rebuild Kit :

Catalog # 90062-0001, Service Kit, Neoprene, with Neoprene Impeller, O-Ring and Seal

Price: $ 228.63

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 17935-0001, Impeller, Neoprene

Price: $ 72.61

Qty :

Can Ship : Same Day (145 in stock)


Shaft Seal :

Catalog # 6407-0010, Service Kit, Neoprene, with Neoprene Impeller, O-Ring and Seal

Price: $ 67.71

Qty :

Can Ship : Same Day (74 in stock)

Applications

These flexible impeller pumps are selfpriming and therefore, are ideal for engine cooling, washdown, circulation and many general purpose onboard or dockside applications. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction. Typical Applications for this pump include Engine Cooling, Bilge Pumping, Water Circulation, Washdown, Circulating and Transferring liquids; Velocitymixing; Transferring soap, liquors, pastes, glues, glycerine, lotions and brine. On the farm they can be used for pumping water for stock and poultry houses and Booster Pumping. Around the house they can be used for pumping out flooded basements, cesspools, sumps and many other uses. If corrosive fluids are handled, pump life will be prolonged if pump is flushed with water after each use or after each work day.
