Jabsco # 61050-1224 Series 155SL Remote Control Searchlight
Jabsco # 61050-1224

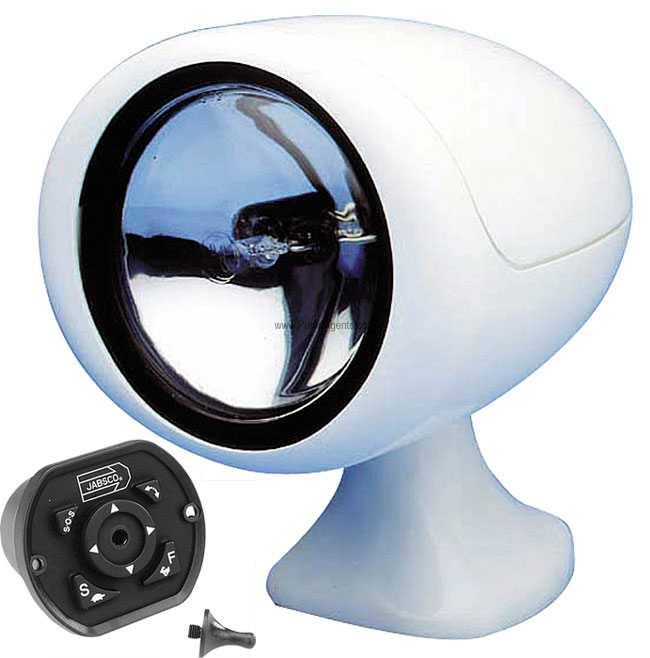

Jabsco catalog # 61050-1224, Series 155SL Remote Control Searchlight. Searchlight is 12/24 Volt DC.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 61050-1224 is a 12/24 Volt DC Series 155SL Remote Control Searchlight. This is Jabsco's leading light for style, performance and value. Sweeping curves complement the latest pleasure craft profiles. Fingertip control of the watertight, halogen-sealed beam will pick out hazards at nearly 900' (275m) by producing 1 lux at 885' (268m) with 100,000 candlepower. Offering style, performance and value, the 155 SL has sweeping curves and fingertip controls. This Searchlight comes complete with electronic touch-pad remote control, including joystick. The advantage of the remote control is that it allows you to direct the light in the best location for maximum effectiveness. They are an increasingly popular addition on power boats, helping locate buoys, moorings and channel markers. Control is by joystick or touchpad. Secondary remote control kits can be bought for most models, which allow control from either the flybridge or main helm.
Features :
Product Specs :
Easily replaceable 5 Inch halogen sealed beam delivers 100,000 candlepower.
Full 360 degrees horizontal rotation, 75 degrees vertical sweep.
Complete with electronic touch-pad remote control, including joystick.
Electronic control includes automatic 20 degrees sweep feature, two speed movement fast for searching, slow for pinpointing target, plus automatic transmission of S.O.S. distress signal through 360 degrees in emergency.
Complete with 15' cable, with optional extension cables.
Tough, thermoplastic housing and base.
Long life gear drive.
Patented clutch mechanism prevents motor damage when running against limit stops.
Parts and Accessories for Jabsco model 61050-1224
Other Parts :
Catalog # 64044-0000, Dual Station Kit
Price: $ 359.21
Catalog # 64044-0000, Dual Station Kit
Price: $ 359.21
Applications
Ideal for boaters.. locate buoys, moorings, channel markers, etc. Ideal for RV'ers.. pinpoint road signs, campsites, or use as backup light.
A marine searchlight has to be capable of performing a range of tasks from locating buoys to illuminating a narrow channel and, occasionally, searching for a man overboard. Therefore, it needs to be designed to offer the best combination of beam spread and intensity for both shorter and longer range work. Typically, our spot beams have a 7 degrees beam spread as opposed to 40 degrees on a flood beam and will consequently reach at least 3 times further.
We quote performance of our searchlight range in two ways candlepower and lux. Candlepower is a useful guide to actual light produced, but does not measure the efficiency of reflector design to project that light at the target. The most relevant comparison guide is lux, which is the measurement of actual light available at a given distance. In order to be able to distinguish a reasonable level of detail, a level of one lux is generally considered to be necessary. This searchlight has 1 lux at 885 feet.
