Jabsco # 6050-0013 Utility Pump - 3/4 HP 115/230Volts TEFC Nitrile

Jabsco Pump 6050-0013

Jabsco # 6050-0013

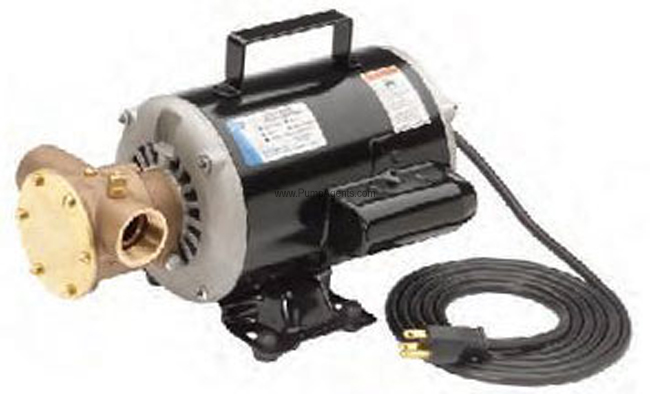

Jabsco catalog # 6050-0013, Bronze Utility Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Pump is Close Coupled to a 3/4 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Comes with a 8 foot cord and plug. Ports are 1 Inch NPT Internal.

Price : $ 1563.56

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 6050-0013 is a Bronze Flexible Impeller Pump with a Nitrile Impeller, Lip Type Seal, 1 Inch NPT Female Ports, coupled to a 3/4 Horsepower, 1725 RPM, 115/230 Volts, 1 Phase, TEFC, 60 HZ Motor, with a 8 foot cord and plug. For general transfer pumping using 115V AC power where self-priming, 23 gpm flow and debris tolerance are required. Oil-resistant nitrile impeller is standard. Do not run dry. Lack of liquid will damage impeller. Pump maybe mounted in any position without loss of efficiency; however, it is suggested that the pump head be down if vertical mounting is desired. The rotation of the motor shaft determines the location of the pump intake and discharge ports. Intake is on right when looking at pump end cover. PRESSURES - For continuous operation, discharge pressure should not exceed 20 psi. SELF-PRIMING - Pump will produce a suction lift approaching 10 feet when dry and a lift up to 22 feet when primed. TEMPERATURES Nitrile impeller supplied in pump is recommended for liquid temperatures of 50 degrees to 180 degreesF (10 degrees to 83 degreesC).

Features :

Pump Body:
Bronze
Impeller:
Nitrile
Shaft Seal:
Lip Type
Port Size:
Ports are 1 Inch NPT Internal
Motor Specs :
3/4 Horsepower, 1725 RPM RPM, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled). wired for 115 Vac operation.

Product Specs :

Self Priming: Will lift fluid up to 22 feet when wet

Will Not Air Lock: Pump will continue to operate even when air passes through the system

Viscous Liquids Handling: Will easily pump thin or thick liquids

Pulsation Free Flow: Delivers a smooth even flow

Non-Shear Action: Will handle delicate fluids

Hard Solid Handling: Passes hard solids or abrasives with minimal wear or damage

Few Moving Parts: Easy to maintain so less downtime

Compact: Will provide high flows from a small size pump

Competitive: Lower cost installation and maintenance than other competing pump types


Parts and Accessories for Jabsco model 6050-0013


Seal Kit :

Catalog # 90058-0003, Service Kit Nitrile

Price: $ 186.45

Qty :

Can Ship : Same Day (55 in stock)


Impeller :

Catalog # 6056-0003, Impeller Nitrile

Price: $ 152.10

Qty :

Can Ship : Same Day (38 in stock)


Shaft Seal :

Catalog # 92700-0080, Lip Seal

Price: $ 61.83

Qty :

Can Ship : Same Day (6 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 6054-0000, Body

Price: $ 304.81

Qty :

Can Ship : Same Day (4 in stock)

Applications

NOTICE Do not pump solvents, thinners, highly concentrated organic acids. Impeller and pump damage may occur. TYPICAL APPLICATIONS MARINE Bait Tank Circulation; Washdown, Utility Dockside Pump, INDUSTRIAL Industrial Filling Systems; Utility Shop Pump; Transfer Gum Arabic, Transfer Distilled Water; Recharge Water Softeners; Ice Water Recirculation; Hydrostatic Pressure Testing; Sump Pumping. FOOD, BEVERAGE and DAIRY Circulate Cooling Water; Defrost Refrigeration Coils; Fill Drums; Wash Down Equipment and Floors; Utility Pump. HOME Fill and Empty Tubs, Pools; Empty Basements and Cesspools; Water Systems; Water Lawns and Gardens; Remove Water from Low Areas; Recharge Water Softeners. PLUMBING Empty Clogged Drains; Empty Sumps, Smks and Tubs; Pump Out Water Closets. FARM Fill Tractor Tires, Water Tanks; Pump out Silo Pits ; Flush and Clean Animal Pens. CONTRACTORS Remove Water from Excavations; Supply Water to Mortar Boxes; Cement Mixing; Washdown Equipment.
