Jabsco # 59451-1012 Ultra-Max Water Pressure Pump And Tank System

Jabsco Pump 59451-1012

Jabsco # 59451-1012

Jabsco catalog # 59451-1012, Ultra Max Water Pressure System and Motor unit. Pump is Coupled to a 12 Volt DC Motor.

Price : $ 467.81

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

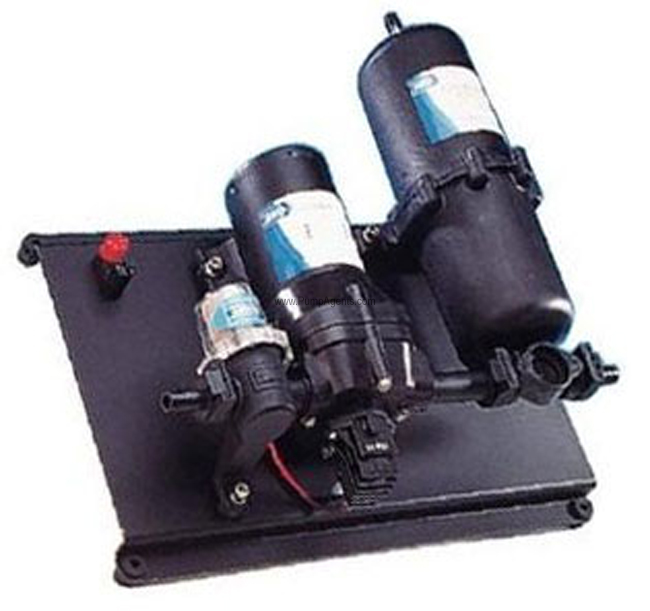

The Jabsco 59451-1012 is an ultra max water pressure system coupled to a 12 Volt DC Motor. This is a fully assembled water pressure set with pump, pressure switch, accumulator tank and pumpgard strainer. This system simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a PAR-Max 3.5 Pump, strainer and pre-pressurized accumulator tank with quick-connect electrical connections on a rubber mounted board. Serves three or more 1/2 Inch (13mm) outlets.

Do not pump gasoline, solvents, thinners or other flammable liquids.

Features :

Product Specs :

Flow of 3.4 gpm .

Self-priming up to 10 feet .

Ideal for up to four outlets.

Can be installed vertically or horizontally.

Quadruple diaphragms for smooth and quiet operation.

Thermal overload protection automatically stops motor should it overheat, with auto restart feature.

Diaphragm design allows extended dry running.

Pressure switch cut-in at 20 psi , cut-out at 40 psi .

Maintenance-free potable water quality accumulator tank.

Complies with USCG 183.410 and ISO 8846 MARINE .


Parts and Accessories for Jabsco model 59451-1012


Major Overhaul Kit / Rebuild Kit :

Catalog # 18920-9043, Service Kit, with Valve Kit, Diaphragm Kit, Lower Housing Kit and Slide Clips

Price: $ 117.07

Qty :

Can Ship : Same Day (7 in stock)


Other Parts :

Catalog # 18916-0040, Pressure Switch, 40 PSI

Price: $ 29.77

Qty :

Can Ship : Same Day (2 in stock)

Applications

The UltraMax should be bolted securely to a flat surface in any suitable location within the vessel where it remains accessible for routine maintenance, taking care not to over compress the mounting feet. The unit should be installed within the pipework system after the water tank and before the pipeline divides to serve the hot water heater or other outlets. Connect the pipe from the water tank to the inlet port on the Pumpgard. Connect the outlet pipework to the discharge port on the Accumulator Tank.
