Jabsco # 37245-1094 Toilet

Jabsco Pump 37245-1094

Jabsco # 37245-1094

Jabsco catalog # 37245-1094, Quiet-Flush Electric Toilet. Toilet is 24 Volt DC EMC. Household Size.

Price : $ 0.00

Click Here for PARTS



Product Information :

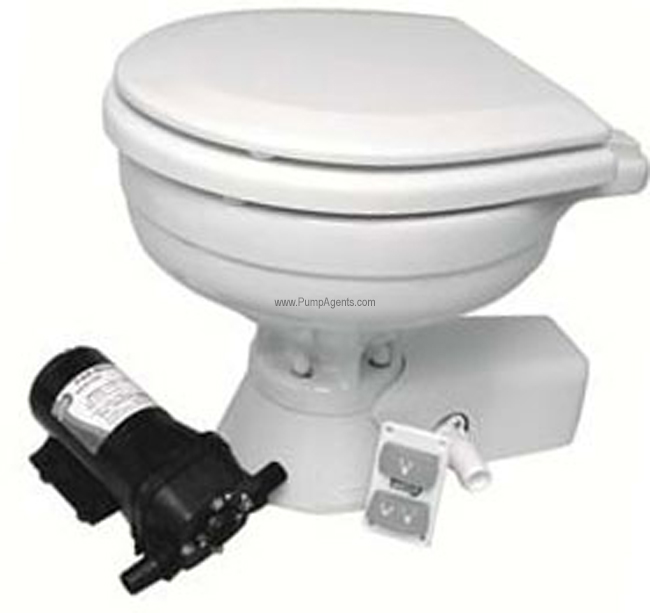

The Jabsco 37245-1094 is a quiet-flush electric toilet with a 24 Volt DC EMC Motor. Household Size Bowl, 1-2 Quarts (Litres)/Flush. The Quiet-Flush toilet provides both quiet operation and user control of water levels in the toilet bowl. A single large push-button switch provides a simple flush mode by activating both the rinse water supply and the macerator discharge pump simultaneously. An additional rocker switch offers independent control of the rinse water supply and discharge pump separately so the bowl water level can be easily raised or lowered by the user. This provides a method of minimizing water use, when desired, as well as a means of raising the water level in the bowl when appropriate for user comfort. It also allows for complete evacuation of the bowl water while underway in rough sea conditions.

Features :

Product Specs :

Very quiet flush cycle - like a household toilet

Single button flush actuator - with dual function water level control switch

Supplied with PAR-MAX 4 self-priming pump to provide sea water or lake water to rinse the toilet bowl

White vitreous china bowl available in compact or comfortable household size

Baked enamel seat and cover

High capacity waste macerator and bowl discharge pump


Parts and Accessories for Jabsco model 37245-1094

Applications

The 37245Series Quiet Flush Toilet is complete with a dedicated PARMAX 4 pump to provide either sea or lake water to rinse the toilet bowl when flushing the toilet. This pump is intended to be located remotely from the toilet but will function best if the distance from the toilet is kept to a minimum. Because it is selfpriming, it may be located above the vessels waterline. It must be installed with the Pumpgard strainer located somewhere in the inlet plumbing to the pump. The toilet also includes a multifunction flush control which should be installed in a bulkhead location that is convenient to the toilet and allows access for wiring to run from the power source and to both the toilet discharge pump and the PARMAX rinse water pump.
