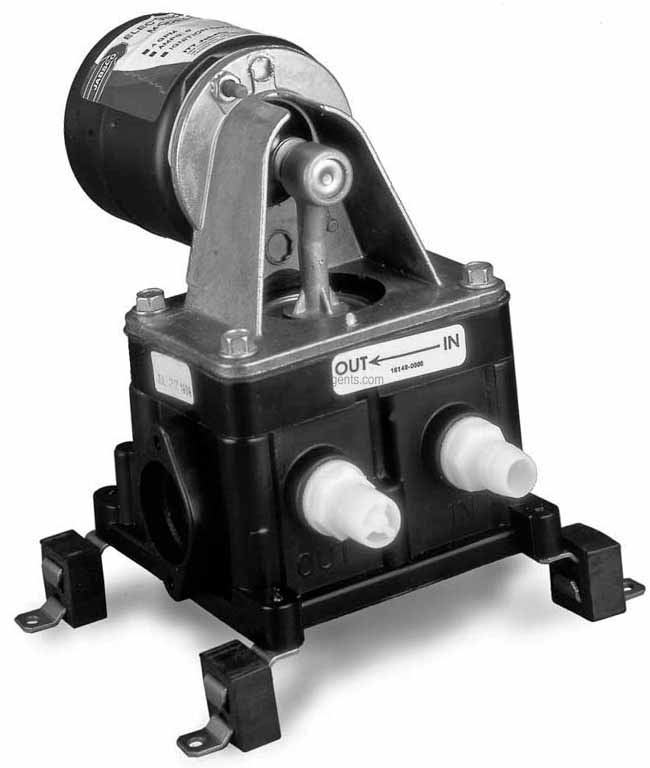

Jabsco # 36960-2010 Self-Priming Electric Bilge Pump
Jabsco # 36960-2010
Jabsco catalog # 36960-2010, Self-Priming Electric Bilge Pump and Motor unit. Pump is Coupled to a 24 Volt DC Motor. Ports are 3/4 Inch Slip-on Hose.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 36960-2010 is a self-priming electric bilge pump with a 3/4 Inch Slip-on Hose Ports, coupled to a 24 Volt DC Motor. This pump has an open flow of 4 GPM and a vertical dry suction lift of 7 feet. These pumps are excellent for shallow bilge boats, where the water left behind by other types of pumps will slop from side to side. With the small size of inlet plumbing, they are very effective as bilge pumps, removing all but the last drops of water. Diaphragm pumps can be run dry, which removes the need to watch overboard outlets while the pump is running. The ability to self-prime means they can be mounted in an easily accessible, high and dry location to simplify installation and improve serviceability.
Features :
Product Specs :
Self-Priming.
Diaphragm Design Allows Dry Running.
Built-in Hydraulic Pulsation Dampener.
Pumpgard Strainer Included with Pump.
Corrosion Resistant Materials Throughout for Sea Water Service.
Meets USCG Regulation 183.410 and ISO 8846 MARINE for Ignition Protection.
Parts and Accessories for Jabsco model 36960-2010
Major Overhaul Kit / Rebuild Kit :
Catalog # 43990-0063, Service Kit, with Connecting Rod Assembly, Valve Set, Diaphragm, and Pulsation Dampener
Price: $ 160.99
Applications
Self priming bilge, shower and sink drain pump. Quiet running and corrosion resistant. Self priming up to 7 feet vertical lift. Mount upright in a dry location on a solid surface. Selection of a dry, cool, ventilated location will generally extend pump life. Locate Pumpgard strainer in accessible spot in suction hose. For intake and discharge use 3/4 Inch ID noncollapsible hose. Keep intake and discharge line free of kinks and restrictions.
