Jabsco # 32605-0094 Marine Washdown Pump

Jabsco Pump



Product Information :

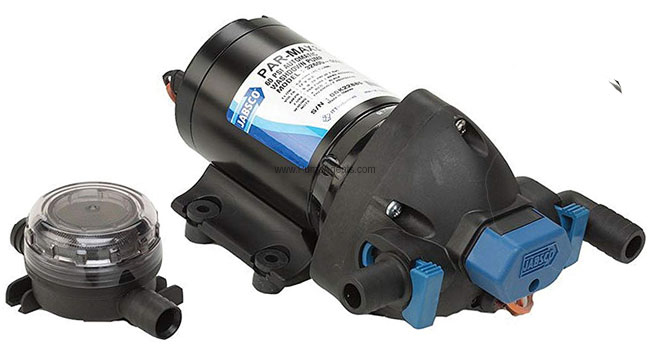

The Jabsco 32605-0094 is a Polypropylene HotShot HD4 series Marine Washdown Pump, rated up to 4 GPM, 60 PSI shutoff, with standard size Snap-In Port fittings, and 1/2 inch Straight Hosebarb fittings, coupled to a 24 Volt DC Motor, and is now replaced by the new version pump model # Q402J-118N-3A. This pump is now replaced by a new version updated and improved Jabsco washdown pump which now replaces all other washdown pump versions. The new version HD (Heavy Duty) model includes a slightly wider diameter motor with a powder coated shell, a co-molded diaphragm technology for long life and durability, cast aluminum endbells and lower housing to improve pressure capability and life. The Pumphead and upper housing material are Glass fiber reinforced polypropylene, with a co-molded TPV Diaphragm, and EPDM Check valves. This pump has an integrated, sealed pressure switch for on-demand operation, with a shut-off pressure of 60 PSI. The motor is a permanent magnet brushed type, with a TENV (Totally Enclosed non-Ventilated) enclosure, with ingress protection to IPX6, and has vibration dampening mounting feet. This pump has an efficient and quiet operation. A plastic housing protects the motor from corrosion. This pump has a Self-priming capability of 7 feet which allows for installation versatility, and the pump can run dry without damage. This pump provides exceptional performance in an economical footprint. The maximum fluid temperature range for this pump is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). NOTE : The pump is not submersible. IMPORTANT : Do not use motor pump units for pumping gasoline or other flammable liquids.

Features :

Pump Body:
Polypropylene
Port Size:
Inlet Port is standard size Snap-In Port fittings, 1/2 inch Straight Hosebarb, Discharge Port is standard size Snap-In Port fittings, 1/2 inch Straight Hosebarb.
Motor Specs :
Horsepower, 24 Volt DC.

Parts and Accessories for Jabsco model 32605-0094


Other Parts :

Catalog # 18916-1060, Pressure Switch - 60 PSI

Price: $ 40.12

Qty :

Can Ship : Same Day (22 in stock)

Applications

The Jabsco 326050094 is a heavy duty marine washdown pump used for ondemand spray to clean anchors, buoys, fishing areas, etc. Typically the higher the flow and the higher the pressure the better. Sometimes used with a Y valve to serve a dual purpose of livewell circulation. Common accessories include strainers, trigger nozzles, hoses, and deck mount fittings. It is sometimes plumbed off of the livewell inlet to reduce number of thruhull fittings. This pump is designed for use with fresh water and salt water ONLY. Use with any other fluid could result in damage to the pump and the surrounding environment, possible exposure to hazardous substances and injury. This pump has an integrated pressure switch. When connected to power, it can start automatically without warning if the pressure switch senses pressure below that of switch shutoff. Mount the pump horizontally, or if vertically, with the pumphead facing down. The pump should be mounted to a solid surface above the waterline in a dry area with adequate ventilation.
