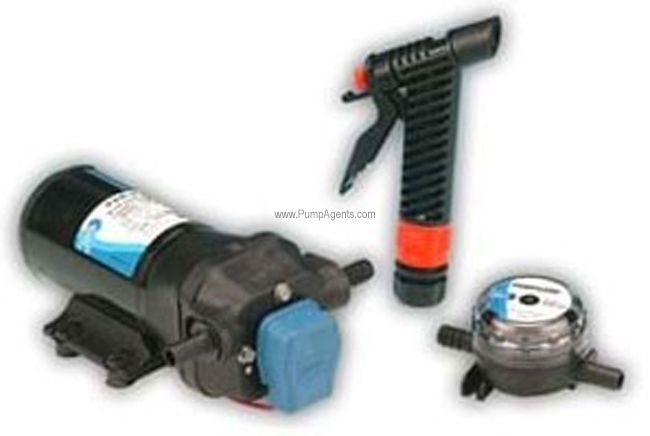

Jabsco # 31700-0094 PAR-MAX 4 Washdown and Baitwell Pump

Jabsco Pump 31700-0094

Jabsco # 31700-0094

Jabsco catalog # 31700-0094, PAR-MAX 4 PAR-MAX 4 PAR-MAX 4 PAR-MAX 4 Diaphragm Pump and Motor unit. Pump is Coupled to a 24 Volt DC Motor. Pressure switch turns off at 50 PSI. Ports are 3/4 Inch Hose Barb or 1/2 Inch. *** NOTE : This catalog number has been updated by the manufacturer, and will ship as the Jabsco Pumps catalog # 32700-0094.

Price : $ 0.00

Click Here for PARTS



Product Information :

The Jabsco 31700-0094 is a PAR-MAX 4 Washdown and Baitwell Pump with a 3/4 Inch Hose Barb or 1/2 Inch Ports, coupled to a 24 Volt DC Motor. The PAR-MAX pumps are self-priming and may be located above or below the fresh water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on motor in the event of a leak. Place pump on a solid surface and secure with the four mounting screws being careful not to compress the rubber grommets which act as shock absorbers.

Features :

Port Size:
Ports are 3/4 Inch Hose Barb or 1/2 Inch

Product Specs :

Self-Priming to 10 ft.

Run Dry Without Damage

Smooth Flow

Four Piston, Diaphragm Pump

Powerful Heavy Duty Motor with Thermal Overload Protection

Snap-in Ports

Waterproof Coating

Meets USCG Regulation 183.410 and EN ISO 8846 MARINE

Meets EN 50081-1 Electro-magnetic Compatibility


Parts and Accessories for Jabsco model 31700-0094


Major Overhaul Kit / Rebuild Kit :

Catalog # 18920-9043, Service Kit, with Valve Kit, Diaphragm Kit, Lower Housing Kit and Slide Clips

Price: $ 107.35
