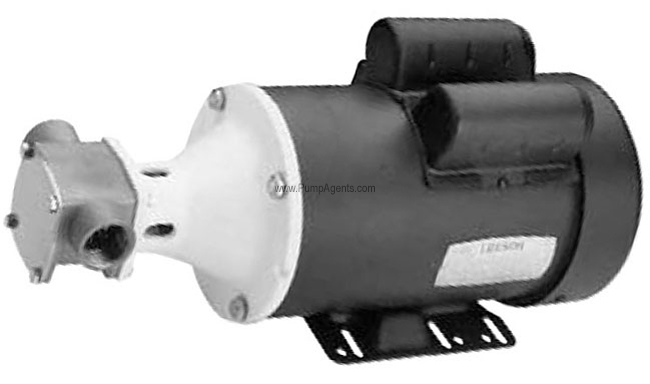

Model # 30510-4003 ( Pump & Motor )
Jabsco Pumps
•  Product Data Sheet (Performance & Dimensions)
• Operation & Maintenence Manual (O & M)
• Parts List & Parts Prices for this Pump
• Order Parts
| FEATURES
|
| Pump
Body: |
316 Stainless Steel
|
|
Impeller: |
Nitrile (Standard Presssure)
|
|
Shaft: |
316 Stainless Steel
|
|
Shaft Seal: |
Mechanical; Carbon-on-Ceramic / Nitrile
|
|
Port Size: |
3/4" NPT Internal
|
|
Motor / Amp Draw: |
115/230 Vac, Single Phase, 60Hz, 3/4 HP, 1740 RPM, TEFC, CFace, 56C Frame, Overload Protected, Capacitor Start.
|
|
|
|
|
|
APPLICATIONS |
|
INDUSTRIAL: Circulating and transferring, velocitymixing,pumping machine tool coolants, spill return,sump drainage, chemicals, pharmaceuticals, soap,liquors, ink, dyes, alcohol, dilute acids, tanning liquors,glycerine, brine, etc.PHARMACEUTICAL: Processing medicines, lotionsand preparations. Filtering pharmaceutical solutions.Filling line supply pump.PAPER PROCESSING: Transferring and applyingstarches, sizes, etc. Circulating and processing woodpulp slurries.FOOD, BEVERAGE & DAIRY: Transfer brines, vinegar,syrups during processing, liquids containing solids insuspension such as chopped tomatoes, nuts, etc.Removal of distillery wort and brewery slop. Processingviscous materials such as peanut butter, mayonnaise,ketchup, honey, etc. (low speed). Pumping whisky, wine,rums, juices and ciders.AGRICULTURAL: Transferring liquid fertilizers, herbicidesand pesticides.
|
|
|
|
|
Model # 30510-4003 ( Pump & Motor ) |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
| Parts and Accessories for Jabsco model 30510-4003 |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
Impeller :
|
|
Shaft Seal :
|
Casing frozen or cracked ? New Pump Casing :
This is the part with the Inlet and Outlet ports
|
|
Parts and Related Accessories :
|
|
