Jabsco # 3010-1021 Epoxy Pedestal Pump

Jabsco Pump 3010-1021

Jabsco # 3010-1021

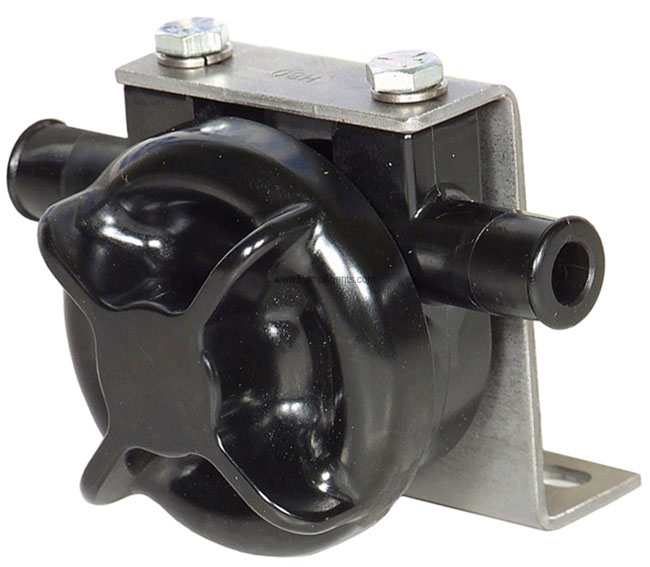

Jabsco catalog # 3010-1021, Epoxy Pedestal Pump, bare shafted pedestal pump end only without a Motor. Phenolic Plastic Construction, with a Neoprene Impeller and Lip Type Seal. Ports are 5/8 Inch ID Hose Barb.

Price : $ 0.00

Click Here for PARTS



Product Information :

The Jabsco 3010-1021 is a phenolic plastic Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, 5/8 Inch ID Hose Barb Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where single or variable speed operation and plastic-epoxy material is desirable. These pumps are self-priming, with a nominal 2.2 gallons/min (10 Litres/min) at 1500rpm flow, are Self-priming from dry up to 4.9 feet (1.5m) and are debris-tolerant. The only metallic parts in this Flexible Impeller Pump are the shaft and drive pin. The shaft and drive pin in this pump are Hastelloy B - (nickel-molybdenum-iron alloy). This possesses excellent resistance to certain highly corrosive fluids such as hydrochloric and muriatic acids, fluoboric acid, oxalic acid. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for the Neoprene impeller in this pump : 45 degrees F to 180 degrees F (7 degrees C to 82 degrees C). Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller.

Features :

Pump Body:
Phenolic Plastic
Impeller:
Neoprene
Shaft Seal:
Lip Type
Port Size:
Ports are 5/8 Inch ID Hose Barb

Product Specs :

Flow rate: Nominal 10 Litres/min at 1500rpm.

Self-priming from dry up to 1.5m .

Can pump in either direction.

Will not airlock.

Easy to service and maintain.

Inexpensive to buy and operate.

Will tolerate abrasive wear .

Handles hard and soft solids without clogging.


Parts and Accessories for Jabsco model 3010-1021


Major Overhaul Kit / Rebuild Kit :

Catalog # 90026-1011, Service Kit, Neoprene, with Neoprene Impeller, O-ring and Seal

Price: $ 46.51


Impeller :

Catalog # 3398-0001, Impeller, Neoprene

Price: $ 34.54


Shaft Seal :

Catalog # 6456-0010, Lip Seal

Price: $ 60.29

Applications

This pump is designed for Carboy and drum transfer, hazardous chemical transfer and recirculation, recirculation of descaling compounds through refrigeration and condenser coils, printed circuit etching, general laboratory transfer, photographic fixes and developers, barium transfer, transfer ammonia on blueprint machines, silver recovery, demineralized and distilled water.
