Jabsco # 18930-0000 Bronze Engine Cooling Pump

Jabsco Pump 18930-0000

Jabsco # 18930-0000

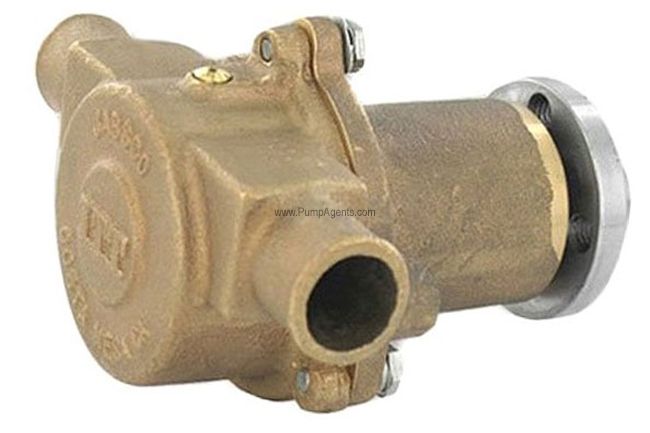

Jabsco catalog # 18930-0000, Bronze Engine Cooling Pump. Bronze Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/4 Inch ID Hose.

Price : $ 985.31

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :

The Jabsco 18930-0000 is a bronze Flexible Impeller engine cooling pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 1-1/4 Inch ID Hose Ports, bare shafted pump only with a pulley mounting adaptor. This pump version is supplied with a pulley mounting adaptor. This pump has a nominal flow rate of 15 gallons/min (56.8 Litres/min) at 1500rpm and is self-priming from dry up to 2.4m (7.8ft). Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. This pump is designed for liquids between 45 degrees and 180 degrees F. Pumping colder water will shorten impeller life. The pump may be mounted in any position. The direction of rotation of the pump determines the location of the intake and discharge ports. Before installing, rotate the pump shaft in the direction of normal operating rotation. The mounting bracket used to support the pump must be designed to enable adjustment of the pump position for proper drive belt tension. pulley mounting adaptor.

Features :

Pump Body:
Bronze
Impeller:
Neoprene
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1-1/4 Inch ID Hose

Product Specs :

15 GPM .

Self-priming from dry up to 2.4m .

Constructed from marine quality bronze and stainless steel.

Mechanical seal.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Will tolerate abrasive wear.

Can pump in either direction.

Will not airlock.


Parts and Accessories for Jabsco model 18930-0000


Major Overhaul Kit / Rebuild Kit :

Catalog # 90184-0001, Service Kit, with Neoprene Impeller, Seal and O-Ring

Price: $ 109.75

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 11979-0001, Impeller And Spline Seal

Price: $ 53.98

Qty :

Can Ship : Same Day (7 in stock)


Shaft Seal :

Catalog # 96080-0080, Service Kit, with Impeller, Seal and O-Ring

Price: $ 60.84

Qty :

Can Ship : Same Day (108 in stock)

Applications

This pump is a Marine Engine Cooling Pump. Jabsco engine cooling pumps are constructed with all bronze body, bearing housing and stainless steel shaft to withstand harsh marine environments. Cooling systems should be designed so the cooling pump operates at no more than 15 psi output pressure and 5 inches of mercury inlet vacuum. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.
