Jabsco # 18680-1000 Reversible Rotary Vane Pump
Jabsco # 18680-1000

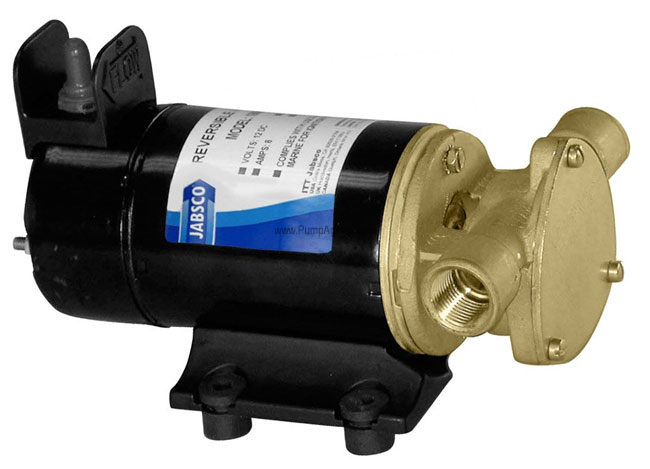

Jabsco catalog # 18680-1000, Reversible Rotary Vane Pump and Motor unit. Bronze Construction. Pump is Close Coupled to a 12 Volt DC Motor. Ports are 1/2 Inch NPT Internal and 1 Inch External Hose Barb.
Price : $ 457.90
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 18680-1000 is a bronze rotary vane pump with a Nitrile Lip seal, coupled to a 12 Volt DC Motor. This is a light duty, 30-minute-rated diesel pump with integral reversing switch. The Jabsco Reversible Rotary Vane Pump is ideal for transferring diesel fuel. It is self-priming to about three feet and can pump against a discharge head up to twenty feet. With its integral on-off reversing switch, it is ideal for moving fuel between port and starboard fuel tanks.
The reversible vane pump is designed for Intermittent duty. Do not operate pump For more than 30 minutes continuously. Rotary vane pumps must not be run dry, as the Pumped liquid is the lubricant for the rotor and vanes.
Features :
Product Specs :
5 GPM at 10' head.
20' maximum total head.
Self-priming up to 3' vertical lift.
22 degreesF to 100 degreesF operating temperature range.
Duty Cycle: 30 minutes at 10' at 86 degreesF .
Complies with USCG 183.410 and ISO 8846 MARINE .
Parts and Accessories for Jabsco model 18680-1000
Applications
The pump must be mounted in a dry location the motor is not waterproof and must not be submerged. Selection of a cool, ventilated location will generally extend pump motor life. The unit can be mounted in any desired position. It is best to mount so that fluid dripping from a loose port connection will not wet the motor. The pump head may be rotated 180 degrees to reverse the direction of flow if desired. The pump cannot run against a closed outlet. Pressure for normal operation should not exceed 20 feet of head. Excessive pressures will cause fuse to blow. Temperature of pumped liquid may be in the range of 45 degrees 165 degrees F.
