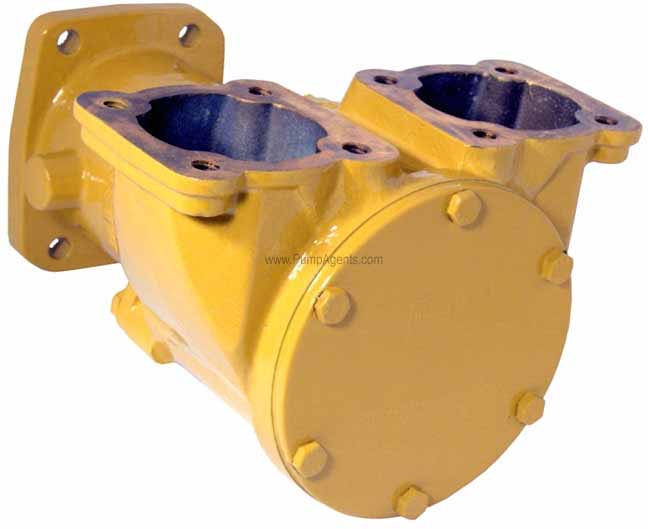

Jabsco # 17970-0100 Caterpillar Marine Engine Cooling Pump

Jabsco Pump 17970-0100

Jabsco # 17970-0100

Jabsco catalog # 17970-0100, Caterpillar Marine Engine Cooling Pump. Neoprene Impeller.

Price : $ 2451.91

Qty :

Same Day (3 in stock)

Click Here for PARTS



Product Information :

The Jabsco 17970-0100 is a Caterpillar marine engine cooling pump with a Neoprene Impeller, bare shafted pump only. This is the Marine Engine Cooling Pump for Caterpillar Series 3406, 3406B, 3406C Engines. It is also the Caterpillar pump # 3N4859, 3N4851, 3N4852, 5N4852. This pump is self-priming, and will self-prime at low or high speeds. It will pump instantly, with dry suction lifts of up to 3m (10 feet), and up to 8m (25 feet) when wetted. This permits cleaner, safer installations. Be sure suction lines are airtight or the pump will not self-prime. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The Temperature limits for the Neoprene impeller in this pump is 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). Pumping colder water than 45 degrees F will shorten the impeller life. These pumps are designed to be fully serviceable and after long use can be restored to like new condition, avoiding complete pump replacement. These pumps have replaceable cams and wearplates for extended product life, and they have one moving part a tough, long-lived, wear-resistant flexible impeller, lubricated by the liquid being pumped. No metal-to-metal pumping action no gears to jam, clog or become noisy.

Features :

Impeller:
Neoprene

Product Specs :

Constructed from marine quality bronze and stainless steel for ruggedness and reliability.

Will Not Air Lock - pump will continue to operate even when air passes through the system.

Pulsation free flow delivers a smooth even flow.

Hard Solids Handling - passes hard solids or abrasives with minimal wear or damage and has replaceable wearplate.

Has few moving parts and is easy to service and maintain so less downtime.

Pump is compact and will provide high flows from a small size pump.

Lower cost installation and maintenance than other competing pump types.


Parts and Accessories for Jabsco model 17970-0100


Major Overhaul Kit / Rebuild Kit :

Catalog # 17970-0100MJK, Major Service Kit, with All The Internal Service Parts Except The Shaft

Price: $ 1277.37

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 17370-0001, Impeller, Neoprene

Price: $ 144.26

Qty :

Can Ship : Same Day (32 in stock)


Shaft Seal :

Catalog # 96080-0371, Mechanical Seal

Price: $ 95.18

Qty :

Can Ship : Same Day (31 in stock)

Applications

Typical Applications for this pump are for Engine Cooling for Caterpillar Engines. These flexible impeller pumps are selfpriming and therefore, are ideal for engine cooling. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction. This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds can be mounted at any angle and pumps in either direction with equal efficiency.
