Jabsco # 15780-0000 Pump

Jabsco Pump 15780-0000

Jabsco # 15780-0000

Jabsco catalog # 15780-0000, Cummins Vortex Engine Cooling Pump. Bronze Construction. Ports are Flanged.

Price : $ 10968.59

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :

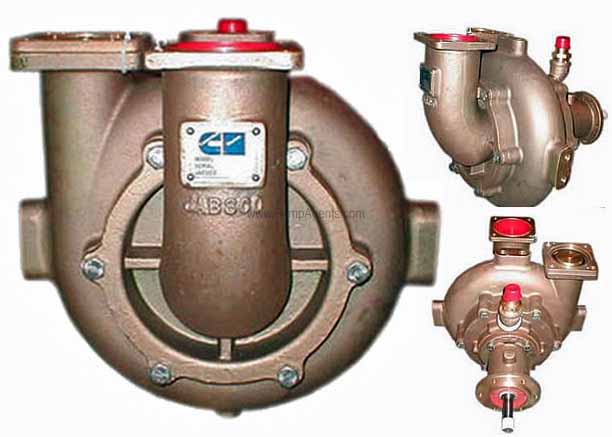

The Jabsco 15780-0000 is a Cummins bronze Flexible Impeller engine cooling pump with a Flanged Ports, bare shafted pump only. This is a Marine diesel engine cooling pump for Cummins engine models K38 / K50 / KTA38 / KTA50. It is the same pump as Cummins engine part 3393018 / 4314820 / 4314522. This pump is a two impeller pump, and has a flexible impeller for self-priming, and a bronze centrifugal impeller for flow. It combines the priming feature of flexible impeller type pumps with the high flow ability of centrifugal pumps. This pump is self-priming, and will self-prime at low or high speeds. Be sure suction lines are airtight or the pump will not self-prime. The Neoprene impeller in this pump depends on liquid pumped for lubrication. Do not run dry for more than thirty (30) seconds as lack of liquid will burn the impeller.

Features :

Pump Body:
Bronze
Port Size:
Ports are Flanged

Product Specs :

Flow up to 400 GPM.

Constructed from marine quality bronze and stainless steel.

Easy to service and maintain.

Excellent self-priming even from dry start-up.

Unaffected by small solid contaminants.

Engineered to high standards.

High-grade design delivers extended lifespan.


Parts and Accessories for Jabsco model 15780-0000


Major Overhaul Kit / Rebuild Kit :

Catalog # 99202-1000, Major Service Kit, with Flapper Assembly, Shaft, Plates, Screw, Mechanical Seal, and Ball Bearings

Price: $ 2450.24

Qty :

Can Ship : Same Day (4 in stock)

Applications

Typical Applications for this pump include Sea Water Engine Cooling for Cummins engines.
