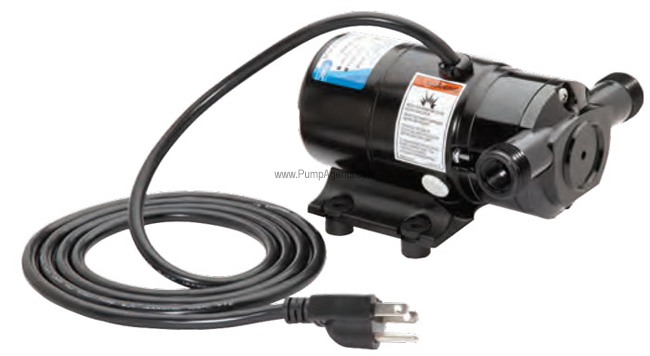

Jabsco # 12310-0001 Phenolic Plastic Flexible Impeller Pump
Jabsco # 12310-0001
Jabsco catalog # 12310-0001, Phenolic Plastic Flexible Impeller Pump and Motor unit. Phenolic Plastic Construction, with a Neoprene Impeller and Lip Type Seal. Pump is Close Coupled to a 115 Volts, Single Motor. Comes with a 6 foot cord and 3 prong plug. Ports are 3/4 Inch External Threaded Garden Hose and 3/8 Inch Internal Pipe Threaded.
Price : $ 493.84
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 12310-0001 is a phenolic plastic Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, coupled to a 115 Volts, Single Phase Motor, with a 6 foot cord and 3 prong plug. The neoprene impeller in this pump can be used for water and general-purpose pumping. This pump can be used where corrosion-resistant plastic material, self-priming, flow and debris tolerance are desired. This pump is Self-Priming and the pump will produce suction lifts up to 7 feet when dry and to 15 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the plastic pump components. The pump may be mounted in any position. The intake is located on the right when looking at the end cover.
Motor is NOT explosion-proof.
Features :
Product Specs :
Max flow rate is 4 GPM
Max pressure is 17 psi , 39 feet of water
Self-priming : 57 feet dry, 1014 feet wet
Motor is PMDC rectified, intermittent duty
Pulsation-free flow: delivers a smooth, even flow
Hard solid handling: passes hard solids or abrasives with minimal wear or damage
Compact: will provide high flows from a small-size pump
Competitive: lower-cost installation and less maintenance than other competing pump types
Parts and Accessories for Jabsco model 12310-0001
Major Overhaul Kit / Rebuild Kit :
Catalog # 90158-0011, Service Kit Neoprene
Price: $ 45.28
Impeller :
Catalog # 14792-0001, Impeller, Neoprene
Price: $ 34.34
Shaft Seal :
Catalog # 1040-0000, Buna Lip Seal
Price: $ 11.77
Applications
This was designed as a low cost pump with improved chemical resistance for chemical feeding, transfer, circulation, filtration, metering, filling line use and similar applications. Handles pure solutions, foaming liquids, and thin emulsions. Because of the chemical, resistance of phenolic plastic and 316 stainless steel, these pumps are widely used to pump photo chemicals, plating solutions, lab solutions, pharmaceuticals, cosmetics, weak acids, alkalies, liquid fertilizers, insecticides, dyes, detergents, waxes and many more. Limited to liquids with viscosity less than 50 SSU.
