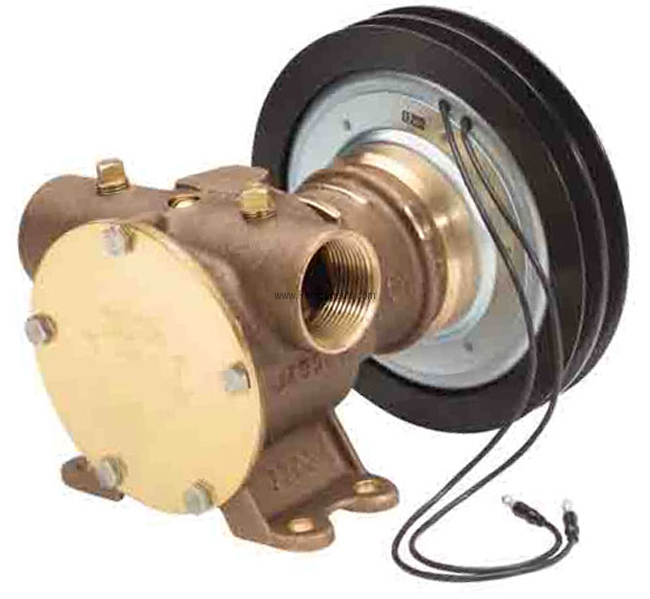

Jabsco # 11870-0011 Electro-Magnetic Clutch Pump 12 VDC
Jabsco # 11870-0011
Jabsco catalog # 11870-0011, Electro-Magnetic Clutch Pump. Bronze Construction, with a Nitrile Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/4 Inch NPT. Pump has a 12 Volt DC Clutch and 1-B Pulley.
Price : $ 2661.58
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 11870-0011 is a bronze Flexible Impeller pump with an electromagnetic clutch, Nitrile Impeller, Carbon/Ceramic Mechanical Seal, 1-1/4 Inch NPT Ports, with a 12 Volt DC Clutch and 1-B Pulley. This pump has a Maximum flow rate of 62 GPM (234 LPM) and is self-priming from 7.8 feet (2.4m) when dry, and will lift fluid up to 22 feet (6.71 meters) when wet.
Do not run dry. Do not use this pump for gasoline, petrol, petroleum products or any products with a flash point below 37 degrees C .
Features :
Product Specs :
Handles water-like and medium viscosity liquids
Excellent self-priming even from dry start-up
Unaffected by small solid contaminants
Quick and easy servicing by unskilled people
Compact, versatile and ready to use
Parts and Accessories for Jabsco model 11870-0011
Seal Kit :
Catalog # 90062-0003, Service Kit, with Nitrile Impeller, Seal and Gasket
Price: $ 166.81
Impeller :
Catalog # 836-0003, Impeller, Nitrile
Price: $ 60.84
Shaft Seal :
Catalog # 6407-0010, Service Kit, Neoprene, with Neoprene Impeller, O-Ring and Seal
Price: $ 67.71
Other Parts :
Catalog # 4732-0000, Vacuum Switch. Pump is Close Coupled to a Motor.
Price: $ 158.14
Catalog # 4732-0000, Vacuum Switch. Pump is Close Coupled to a Motor.
Price: $ 158.14
Applications
These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dockside pump, Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning Liquors, Glycerine, Brine, etc. Pumping water stock, Pumping water from shallow wells and cisterns, Pumping out flooded basements, Cesspools, Sumps, Water heaters and water closets, Drains and sinks, Draining fishponds and pools, Under the hood mounting on service trucks for draining meter boxes, manholes, excavations; For pollution control and watering for dust control.
