Groco # GPBR-1-24V Reversing Gear Pump

Groco Pump GPBR-1-24V

Groco # GPBR-1-24V

Groco catalog # GPBR-1-24V, Positive Displacement Reversing Gear Pump and Motor unit, Self Priming, controlled by Pump Mounted Reversing Switch, Bronze construction. Motor is 24 Volt DC. Inlet Port is 3/8 Inch, Discharge Port is 3/8 Inch NPT.

Price : $ 673.08

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

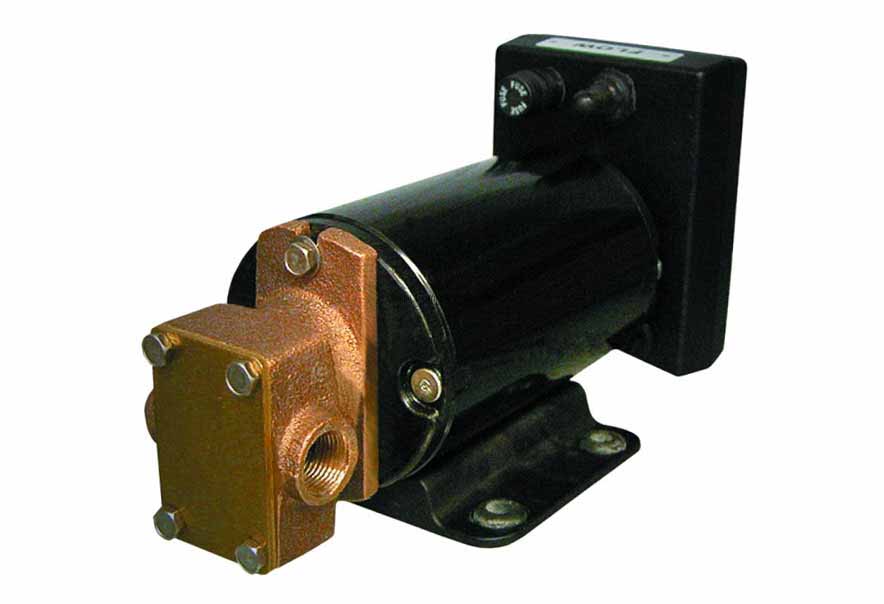

The Groco GPBR-1-24V is a Bronze Positive Displacement Reversing Gear Pump and Motor unit, controlled by Pump Mounted Reversing Switch, Self Priming with 3/8 Inch by 3/8 Inch NPT Ports, coupled to a 24 Volt DC Motor. This gear pump is a positive displacement pump, is self-priming, capable of operation in either direction, and it is instantly reversible. It has a relatively low flow (less than vane pumps) which makes it suitable for duties such as deck-wash, fuel transfer, ballast transfer, and oil change. The motor is ignition protected with a 316 stainless steel shaft. The pump is operated by a Pump-mounted On-Off-On toggle switch which is included with the unit.
Important : DO NOT USE FOR GASOLINE or other combustible fluids.

Features :

Pump Body:
Bronze
Port Size:
Inlet Port is 3/8 Inch, Discharge Port is 3/8 Inch NPT.
Motor Specs :
24 Volt DC.

Parts and Accessories for Groco model GPBR-1-24V

Applications

The GPBR124V gear pump may be used to perform a variety of onboard duties such as fuel transfer, engine oil change or ballast trim. If the pump is at or below the liquid source level, inline valves may be installed at both pump ports to prevent fluid spills during pump service. The pump should be powered and protected by a dedicated circuit breaker of the proper capacity. No regular maintenance is required. Annual inspection of plumbing and electrical connections should be made. If the pump is installed above the liquid level, no winterization is required. If the pump is installed at or below the liquid level, drain the pump body by removing the cover plate.
