Gorman Rupp # 17651-091 Magnetic Drive Centrifugal Pump

Gorman Rupp Pump 17651-091

Gorman Rupp # 17651-091

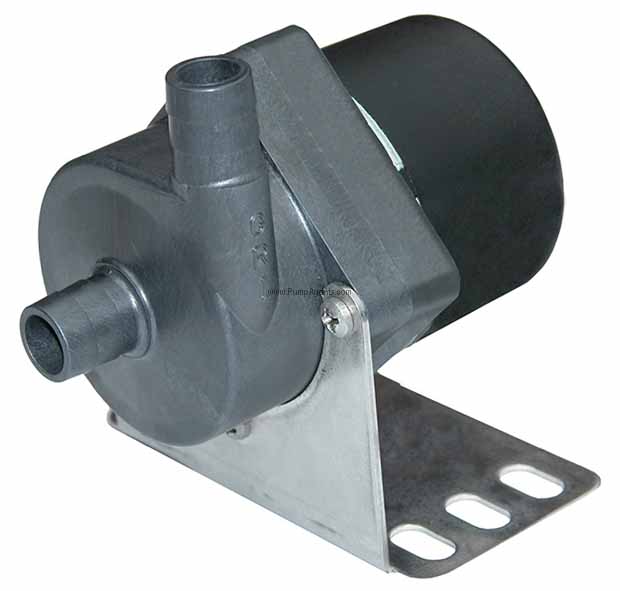

Gorman Rupp catalog # 17651-091, Magnetic Drive Centrifugal Pump and Motor unit, Vectra LCP liquid crystal polymer plastic construction. Motor is 12 Volt Brushless DC. Inlet Port is 1/2 inch MHB, Discharge Port is 1/2 inch MHB.

Price : $ 1244.15

Qty :

4 Weeks (0 in stock)



Product Information :

The Gorman Rupp Industries (GRI) model # 17651-091 is a Vectra LCP liquid crystal polymer plastic Magnetic Drive Centrifugal Pump with a 1/2 inch MHB x 1/2 inch MHB Ports, close coupled to a 12 Volt Brushless DC Motor. This pump has a performance range up to 3.75 gpm and a maximum head up to 14.5 feet. This magnetic drive centrifugal pump's operation is similar to a standard centrifugal pump except the motor shaft seal is eliminated. Magnetic drive pumps are designed to isolate the pump body from the motor by driving an impeller and magnet assembly with a drive magnet attached to the motor shaft. Motor torque is transmitted by a drive magnet through a plastic housing to the impeller assembly. The plastic housing separates the motor drive magnet from the fluid being pumped. Leaks caused by shaft seal failure are eliminated. The end result is a more efficient seal-less centrifugal pump that will not leak and is capable of achieving up to 50 thousand hours of continuous duty operation. Impellers and pump bodies are designed to produce efficient flow and head characteristics required in todays applications. The hydraulic designs, coupled with motors specifically designed for the pump end, means less power consumption for the work per-formed. These GRI Centrifugal pumps are designed to transfer both corrosive and non-corrosive fluids at maximum hydraulic efficiencies. GRI Mag-Drive Centrifugal pumps are not self-priming and must be used in applications where a flooded suction exists. These pumps cannot be run dry. To allow for optimum life the Maximum Fluid Temperature for this mag drive pump is up to 160 degrees F (71 degrees C). The wetted materials of this pump are Vectra LCP liquid crystal polymer, Viton, Teflon and Ceramic.

Features :

Pump Body:
Vectra LCP liquid crystal polymer plastic
Port Size:
Inlet Port is 1/2 inch MHB, Discharge Port is 1/2 inch MHB.
Motor Specs :
12 Volt Brushless DC.

Applications

Typical applications for the GRI 17651091 include marine applications, laser systems, alternative energy systems, public transit systems, chillers, deviced whic circulate glycol or water, alternative power units, thermal heating and cooling systems, pirinting tools, beverage dispensers, recreational vehicle production, cooler systems, medical machinery and systems, fuel cells, coolant systems, and hydronic systems. To handle the most aggressive chemicals, the materials of construction consist of special combinations of chemically inert plastic. The impeller shaft and bearing system handle the inherent friction and motor heat with builtin cooling passages that are designed to use the pumped liquid as a lubricating coolant. These pumps use ceramic shafts with either Teflon or ceramic thrust bearings as standard materials for each magnetic drive pump line. These robust features add tremendously to the chemical compatibility and overall life of the pump to make it virtually maintenance free. The leakfree characteristics in these magnetic drive pumps makes them perfect for applications in the laboratory and analytical instrumentation market, whether using them for fluid metering, sterilizing laboratory and surgical equipment, a critical analytical application, or a simple fluid circulation loop.
