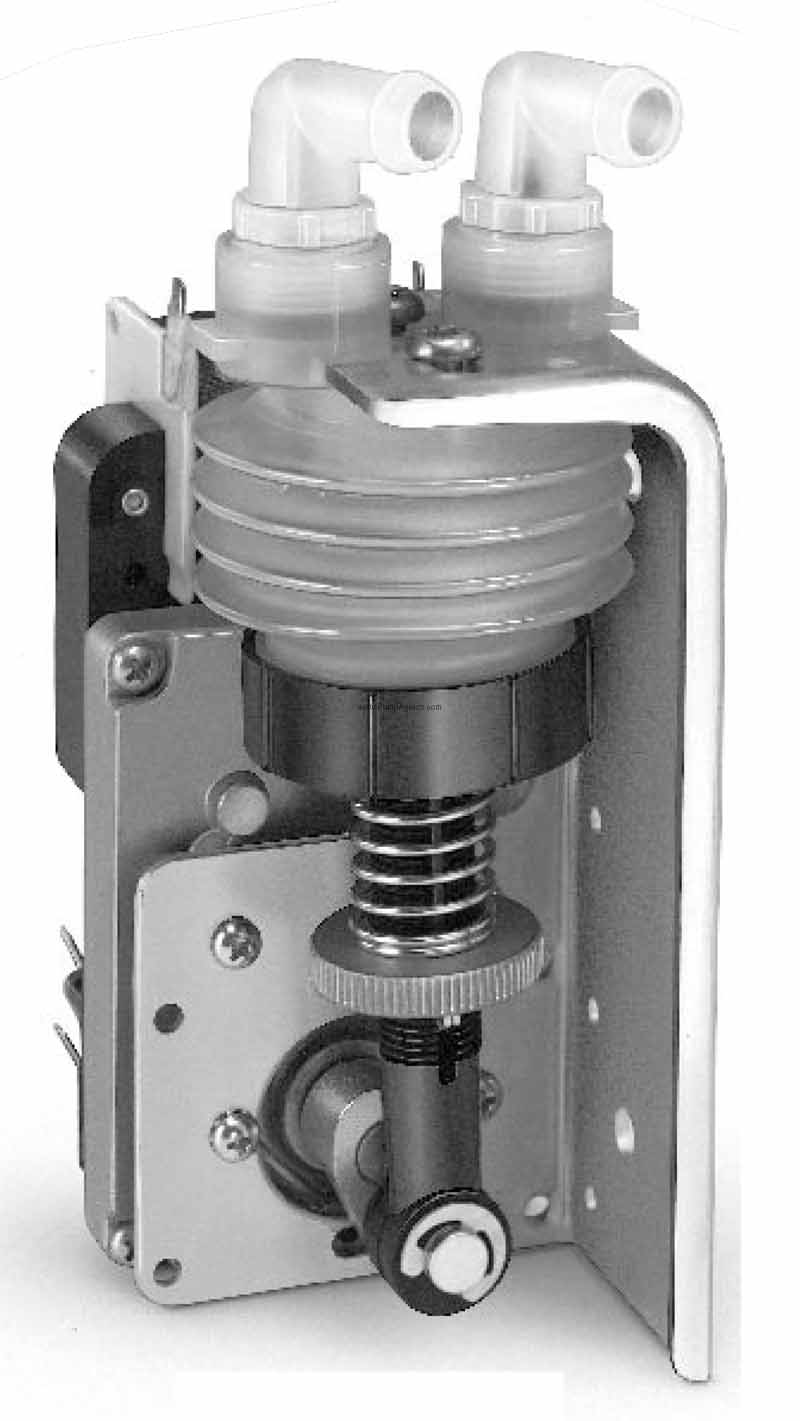

Gorman Rupp # 15090-004 Single Stroke Dispensing Bellows Pump
Gorman Rupp # 15090-004
Gorman Rupp catalog # 15090-004, Single Stroke Dispensing Bellows Pump, 1-1/2 Inch Bellows. Motor is 10 RPM, 230 Volts.
Price : $ 283.83
Product Information :
The Gorman Rupp Industries (GRI) model # 15090-004 is a Single Stroke Dispensing Bellows Pump, 1-1/2 Inch Bellows, coupled to a 10 RPM, 230 Volt Motor. Actuation of the single stroke dispensing pump is triggered by a switch. The crank makes one revolution before a microswitch interrupts the power circuit. Flow rates can be adjusted. Gearmotors on this dispensing pump are rated for intermittent duty cycles. The maximum temperature for this pump is 140 F.
WEIGHT : The Gorman Rupp 15090-004 weighs 5 lbs.
Features :
Applications
Typical applications for the GRI 15090004 include film and xray processors, silver recovery systems, wafer and silicon chip washers and processors, detergent dispensers, blood analyzing equipment, industrial floor scrubbers, thermo therapy equipment, waste removal systems, and wastewater and water treatment systems. Maximum fluid viscosity is 5,000 centistokes. The poppet valves in this pump can handle fine slurries. Duckbill valves are recommended for heavy slurries or fibrous materials. Heavy slurries should be flushed from the pump before shutdown.
11/2 inch Bellows pumps have these available poppet valve and oring material options X111 / X111 Butyl, X112 / X112 EPDM, X113 / X113 Hydrin, X116 / X116 Viton/FKM, X118 / X118 Silicone, X119 / X119 Nitrile ; and these duckbill valve and oring material options X031 / X031 Butyl, X032 / X032 EPDM, X033 / X033 Hydrin, X036 / X036 Viton/FKM, X038 / X038 Silicone, X039 / X039 Nitrile. Available T code port options T001 T1, T002 T2, T003 T3, T004 T4, T005 T5, T006 T6, T007 T7, T008 T8, T009 T9, T011 T11, T012 T12, T013 T13, T014 T14, T001 T01, T002 T02, T003 T03, T004 T04, T005 T05, T006 T06, T007 T07, T008 T08, T009 T09 ports.
