Gorman Rupp # 14524-001 Centrifugal Pump
Gorman Rupp # 14524-001
Gorman Rupp catalog # 14524-001, Series 200 Centrifugal Pump and Motor unit, Polyethylene Plastic construction, Polyethylene Plastic impeller. Motor is 115 Volts, Single Phase, Shaded Pole.
Price : $ 184.09
Product Information :

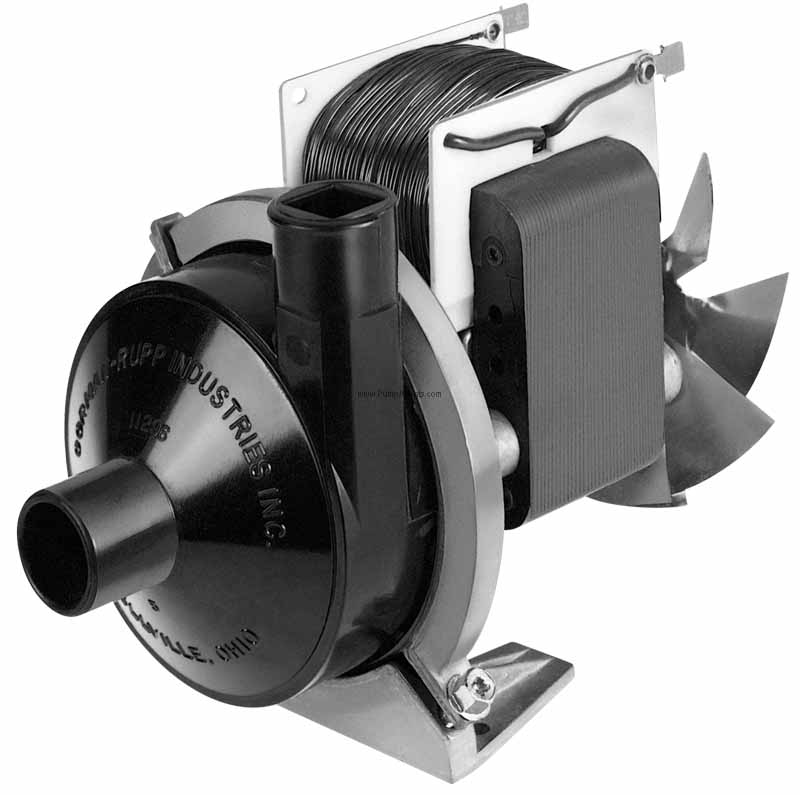

The Gorman Rupp Industries (GRI) model # 14524-001 is a Polyethylene Plastic Centrifugal Pump with a Polyethylene Plastic Impeller, close coupled to a 115 Volt, Single Phase, Shaded Pole electric Motor. This pump has a performance range up to 13 gpm and a maximum head up to 9.7 feet. These GRI Centrifugal pumps are designed to transfer both corrosive and non-corrosive fluids at maximum hydraulic efficiencies. GRI Centrifugal pumps are not self-priming and must be used in applications where a flooded suction exists. These pumps can not be run dry. These pumps are corrosion resistant, hydraulically efficient with quiet operation, and have flexible mounting and body discharge positions. Motors have low current draw and heat rise, and are continuous duty rated, and thermally protected. To allow for optimum life the Maximum Fluid Temperature for pumps with mechanical seals is up to 180 degrees F (82 degrees C).
Features :
Applications
Typical applications for the GRI 14524001 include marine applications, laser systems, alternative energy systems, public transit systems, chillers, deviced whic circulate glycol or water, alternative power units, thermal heating and cooling systems, pirinting tools, beverage dispensers, recreational vehicle production, cooler systems, medical machinery and systems, fuel cells, coolant systems, and hydronic systems. To handle the most aggressive chemicals, the materials of construction consist of special combinations of chemically inert plastic. The impeller shaft and bearing system handle the inherent friction and motor heat with builtin cooling passages that are designed to use the pumped liquid as a lubricating coolant. These pumps use ceramic shafts with either Teflon or ceramic thrust bearings as standard materials for each magnetic drive pump line. These robust features add tremendously to the chemical compatibility and overall life of the pump to make it virtually maintenance free. The leakfree characteristics in these magnetic drive pumps makes them perfect for applications in the laboratory and analytical instrumentation market, whether using them for fluid metering, sterilizing laboratory and surgical equipment, a critical analytical application, or a simple fluid circulation loop.
