Gianneschi # ECO-MV44-24V Screw Pump 0.33 KW 0.4 HP

Gianneschi Pump ECO-MV44-24V

Gianneschi # ECO-MV44-24V

Gianneschi catalog # ECO-MV44-24V, MVG Series Single Screw Pump and Motor unit, Bronze construction, Buna Nitrile Stator, Stainless Steel Screw Rotor impeller, 316 Stainless Steel Shaft. Motor is 0.33 KW (0.4 Horsepower), 24 Volts DC. Inlet Port is 1 Inch BSP Inlet, Discharge Port is 1 Inch BSP Outlet.

Price : $ 3335.92

Qty :

2 Weeks (0 in stock)



Product Information :

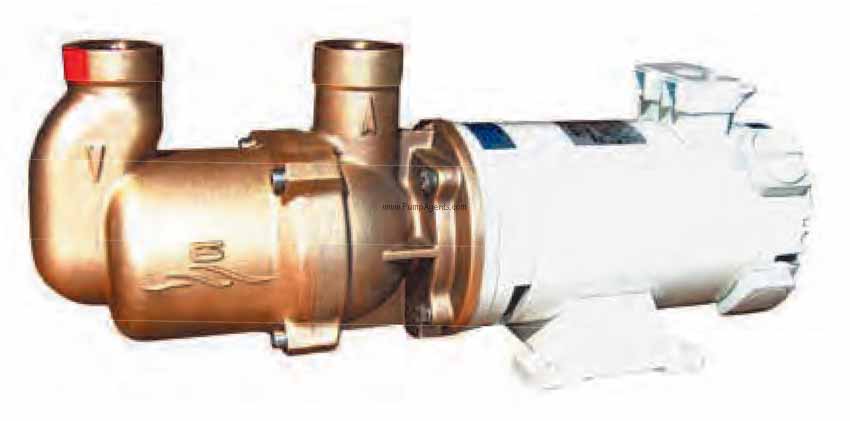

The Gianneschi ECO-MV44-24V is a Bronze MVG Series Single Screw Pump and Motor unit with Buna Nitrile Stator, Stainless Steel Screw Impeller, 1 Inch BSP Inlet by 1 Inch BSP Outlet Ports, coupled to a 0.33 KW (0.4 Horsepower), 24 Volts DC Motor. This is a Positive Displacement volumetric pump capable of delivering continuous and exact amounts of fluids. The fluid is first sucked into the chamber, creating a vacuum and then expelled from the chamber, thus increasing the pressure inside it. A metal single-thread 316 Stainless Steel helical rotor is turned by the motor inside a Buna Nitrile rubber stator with a double-thread helical profile to push the liquid along. The pump can manage all types of fluids such as dirty, viscous and/or with suspended parts. Even though this is a self-priming pump, in order to allow the self-priming and lubricate the stator it is necessary to prime the pump and fill the pump body with liquid before starting the unit. We suggest to install a check valve or no-return valve on the suction pipe in order to prevent the pump empting. The main materials of construction are Bronze (Pump body), 316 Stainless Steel, and Buna-N (stator and seal). The rubber stator, universal joint, and mechanical shaft seal are the main parts that need replacing, and this pump is very easy to repair and service. Motor brushes are available for the motor. At initial startup or after a long time of no use, it is important to verify the correct direction of rotation in order to avoid the unscrewing of the rotor. F class Insulation, IP 22 Protection

Features :

Pump Body:
Bronze
Impeller:
Buna Nitrile
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1 Inch BSP Inlet, Discharge Port is 1 Inch BSP Outlet.
Motor Specs :
0.33 KW (0.4 Horsepower), 24 Volts DC.

Applications

Typical applications for the ECOMV4424V include emptying of Heavy Liquid Tanks Black And Grey Water, Emptying of waste, liquid with small suspended parts. This is a relatively simple pump that consists of a stainless steel rotor screw that turns through a rubber stator and pushes liquid along.
