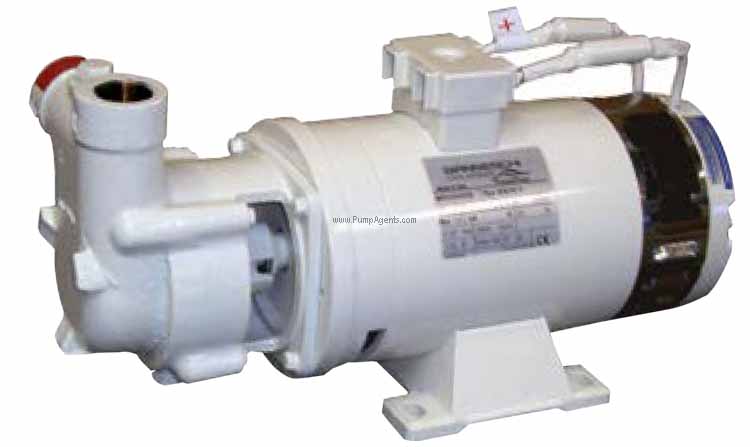

Gianneschi # ACB90E-24V Self Priming Liquid Ring Pump 0.44kW 0.6 HP
Gianneschi # ACB90E-24V
Gianneschi catalog # ACB90E-24V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.44kW (0.6 Horsepower), 2800 RPM, 24 Volts DC. Inlet Port is 1 Inch, Discharge Port is 1 Inch.
Price : $ 2235.17
Product Information :
The Gianneschi ACB90E-24V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 1 Inch by 1 Inch Ports, coupled to a 0.44kW (0.6 Horsepower), 2800 RPM, 24 Volts DC Motor. This pump is self-priming up to 8 m, can go as high as 2800 RPM, and operates at 24 V at 0.59 Hp. One only needs to pump water through it on its first run for it to become fully operational, and it is suggested that one install a clapet valve and filter with it to prevent backflow. It comes specially equipped with a 316 stainless steel shaft, a bronze body, a high quality ceramic mechanical seal with graphite inox, and a brass impeller. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB90E-24V weighs 30.8 Lbs.
Features :
Applications
Typical applications for the ACB90E24V include water supplying, bilges, oil and diesel, chain washing, as well as in any applications involving the pumping of seawater or liquids that have a high gas content.
