Gianneschi # ACB331-230V Self Priming Multi Stage Pump 1.8KW 2.4 HP

Gianneschi Pump ACB331-230V

Gianneschi # ACB331-230V

Gianneschi catalog # ACB331-230V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.8KW (2.4 Horsepower), 1750 RPM, 230 Volts AC, Single Phase. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.

Price : $ 4915.82

Qty :

2 Weeks (0 in stock)



Product Information :

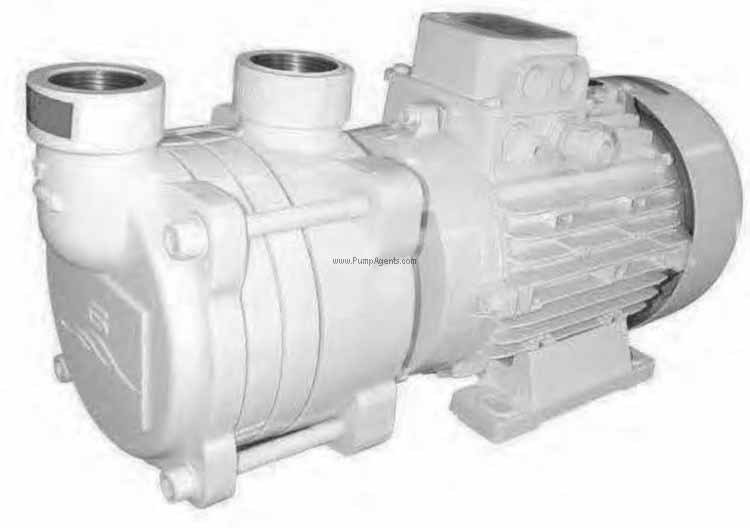

The Gianneschi ACB331-230V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 1.8KW (2.4 Horsepower), 1750 RPM, 230 Volt AC, Single Phase Motor. This pump only requires that one pump water through it on its first run in order to become fully operational, and it is suggested that one install a clapet valve and filter with it to prevent any backflow from occuring. It is specially equipped with a bronze impeller and body, a high quality ceramic mechanical seal with graphite inox, and a 316 stainless steel shaft. It is self-priming up to 8 m, can go as high as 1750 RPM, and operates at 60 Hz at 2.41 Hp. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACB331-230V weighs 71 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.
Motor Specs :
1.8KW (2.4 Horsepower), 1750 RPM, 230 Volts AC, Single Phase.

Applications

Typical applications for the ACB331230V include mixture pumping, bilges, oil and diesel, water supply plants, fire fighting, chain washing, as well as in the pumping of seawater or liquids with high gas contents.
