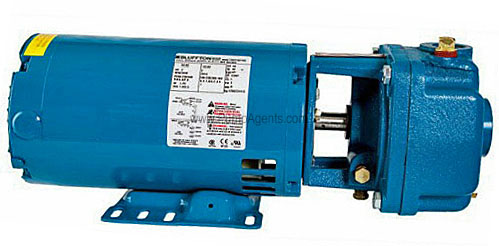

Series # CS9M
Burks Pumps
•  Product Data Sheet (Performance & Dimensions)
• Operation & Maintenence Manual (O & M)
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
MATERIALS OF CONSTRUCTION
Frame : Cast Iron
Case : Cast Iron
Raceway : Bronze
Impeller : Bronze (Monel Blades)
Shaft : #316 Stainless Steel
Shaft Seal : Carbon-Ceramic / S. Steel / Buna-N
MAXIMUM OPERATING CONDITIONS
TEMPERATURE (For Standard Buna-N Seal) : 225°F (107°C)
INLET PRESSURE : 100 PSI (689kPa)
CASING WORKING PRESSURE : 250 PSI (1724kPa)
VISCOSITY : 200 SSU
FEATURES
• Self-Priming
• Compact, Space-saving size
• No coupling - eliminates misalignment problels
• Dependable carbon/ceramic mechanical shaft seal for temperatures to 225°F (107°C).
• Bronze impeller with Monel blades - the only moving part
• Bronze raceway with cast-in vortex pockets - will not vapor lock
• #303 Stainless Steel pump shaft
• Easy to service
• Every pump factory tested
• Available Bronze fitted, All Bronze, Stainless SteelBURKS is the only turbine pump with Life-Lok ® External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40% longer service life than turbine pumps of other designs.
|
|
|
|
| Available
Series # CS9M |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
