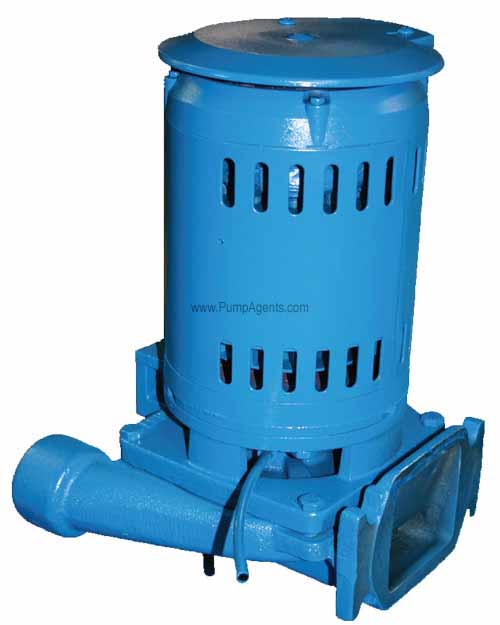

Home Page  |  Contact Us  |  Customer Service  |  View Your Order We Ship Worldwide from the USA Buy Burks Pumps and Parts online from our website Store Search :   Enter keywords, model #"s or part #"s See All Pump Brands >> Browse by Pump Type >> Burks Pumps Flojet Pumps Flotec Pumps Hypro Pumps Jabsco Pumps Little Giant Pumps Myers Pumps Sherwood Pumps Shurflo Pumps Centrifugal Pumps All Bronze Centrifugal Pumps Turbine Pumps All Bronze Turbine Pumps Self Priming Pumps Jet Pumps Scroll down the page for prices & model #"s, or to order a specific model. Series # GV6-1-1/4 Burks Pumps FEATURES APPLICATIONS MATERIALS OF CONSTRUCTION Adapter : Cast Iron Casing : Cast Iron Casing wear ring : Bronze Impeller : Bronze Shaft : Steel Shaft Seal : Carbon-Ceramic / S. Steel / Buna-N MAXIMUM OPERATING CONDITIONS TEMPERATURE (For Standard Buna-N Seal) : 225°F (107°C) INLET PRESSURE : 100 PSI (690 kpa) CASING WORKING PRESSURE : 200 PSI (1379kpa) VISCOSITY : 200 SSU FEATURES • 1/3 thru 3 hp - seven stock sizes. • Capacities to 80 GPM (5 L.P.S.) - Heads to 130 feet (39.6M). • Efficient hydraulic design. • Enclosed bronze impeller threaded onto stainless steel motor shaft. • Impeller balanced for smooth, quiet operation. • Replaceable bronze casing wear ring. • Back pull-out design allows servicing without disturbing piping. Pump casing stays in place. • Mechanical shaft seal is self-adjusting - for temperatures to 225°F (107°C) and pressures to 150 PSI (1034kpa). • Special seals available for higher temperatures and fluids other than water. • Tappings provided for venting and flushing seal area. • Bronze fitted, close grain cast iron construction is standard. All Iron available. • ODP motors are standard. Drip cover provided for vertical installation. • EVERY pump is factory tested. Available Series # GV6-1-1/4 Model # Description Price / ea. ORDER CAN SHIP SK8514-22021  SK851422021  Catalog # SK8514-22021, Seal Kit for all GA6-1-1-/4,G6-1-1/4,GV6-1-1/4 Series. Includes P/N # 8514 - Mechanical Seal - Buna N, P/N # 22021 - Casing O-Ring - Buna N, P/N # 21182 - Impeller Cap Screw, P/N # 21181 - Impeller Cap Washer $ 49.00 Qty. Same Day (2 in stock) 3GV6-1-1/4FC  3GV61-1/4FC  Datasheet Catalog # 3GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1/3 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.22 Inches. $ 794.00 Qty. 1-2 Days (can build) 5GV6-1-1/4FC  5GV61-1/4FC  Datasheet Catalog # 5GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1/2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.63 Inches. $ 678.00 Qty. Same Day (1 in stock) 7GV6-1-1/4FC  7GV61-1/4FC  Datasheet Catalog # 7GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 3/4 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.88 Inches. $ 793.00 Qty. 1-2 Days (can build) 10GV6-1-1/4FC  10GV61-1/4FC  Datasheet Catalog # 10GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.25 Inches. $ 894.00 Qty. 1-2 Days (can build) 15GV6-1-1/4FC  15GV61-1/4FC  Datasheet Catalog # 15GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.63 Inches. $ 910.00 Qty. 1-2 Days (can build) 20GV6-1-1/4FC  20GV61-1/4FC  Datasheet Catalog # 20GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.88 Inches. $ 950.00 Qty. 1-2 Days (can build) 30GV6-1-1/4FC  30GV61-1/4FC  Datasheet Catalog # 30GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 3 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 5.66 Inches. $ 856.00 Qty. 1-2 Days (can build) 33GV6-1-1/4FC  33GV61-1/4FC  Datasheet Catalog # 33GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1/3 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.22 Inches. $ 849.00 Qty. 1-2 Days (can build) 35GV6-1-1/4FC  35GV61-1/4FC  Datasheet Catalog # 35GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.63 Inches. $ 872.00 Qty. 1-2 Days (can build) 37GV6-1-1/4FC  37GV61-1/4FC  Datasheet Catalog # 37GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 3/4 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.88 Inches. $ 872.00 Qty. 1-2 Days (can build) 310GV6-1-1/4FC  310GV61-1/4FC  Datasheet Catalog # 310GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.25 Inches. $ 919.00 Qty. 1-2 Days (can build) 315GV6-1-1/4FC  315GV61-1/4FC  Datasheet Catalog # 315GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.63 Inches. $ 1015.00 Qty. 1-2 Days (can build) 320GV6-1-1/4FC  320GV61-1/4FC  Datasheet Catalog # 320GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.88 Inches. $ 1015.00 Qty. 1-2 Days (can build) 330GV6-1-1/4FC  330GV61-1/4FC  Datasheet Catalog # 330GV6-1-1/4FC, Bronze Fitted Cast Iron Construction. Close Coupled to a 3 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are Square Mouth Flanged Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 5.66 Inches. $ 1083.00 Qty. 1-2 Days (can build) AMT Pumps Berkeley Pumps Gorman Rupp GRI Hydromatic Pumps Johnson Pumps March Pumps Oberdorfer Pumps Sta Rite Pumps Marine Pumps Store Policy  |  Terms & Conditions  |  Contact Us  |  Site Map Copyright © 2007 Equipment Agents Inc.
